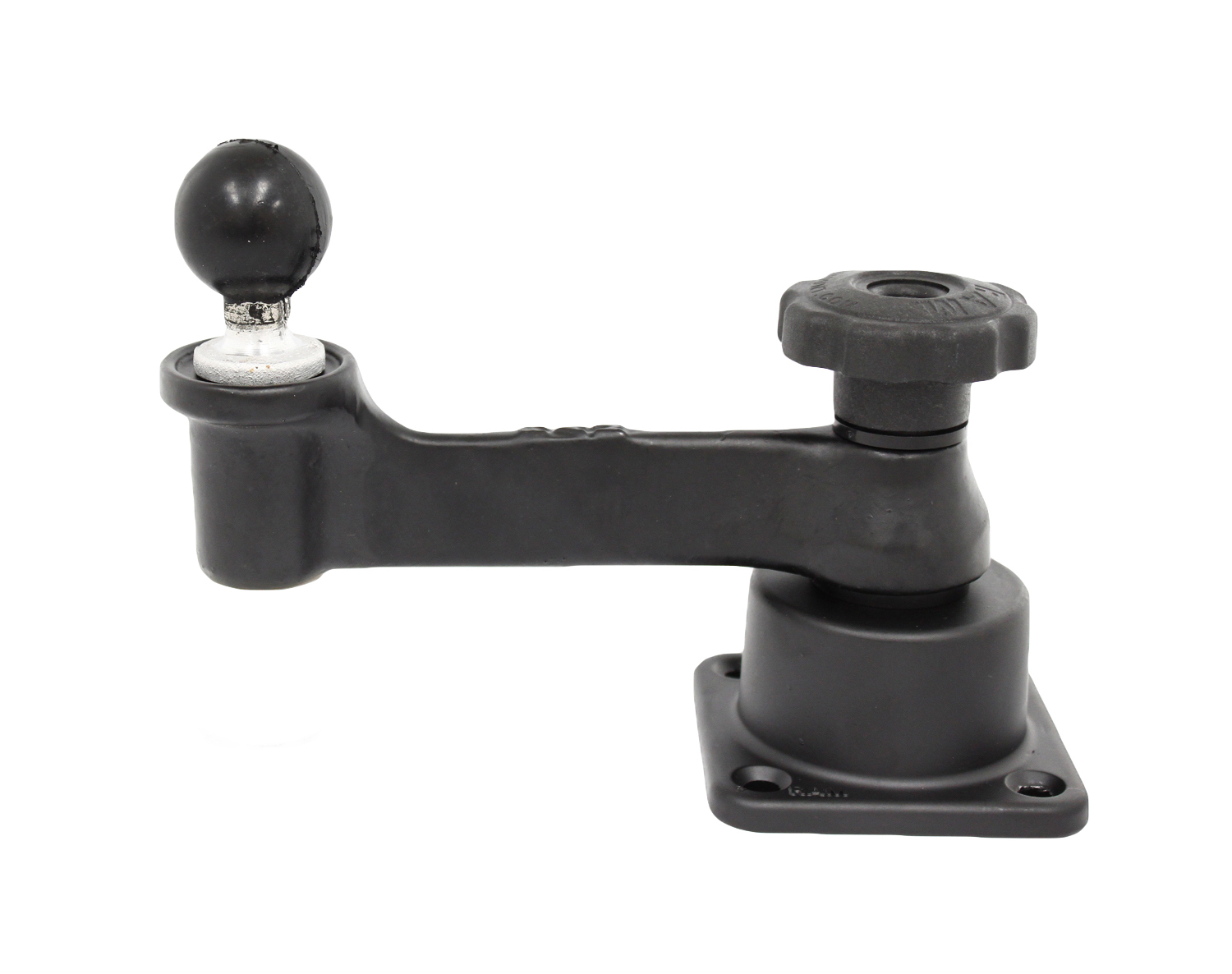

The RAM-109H-2BU consists of a 6" long STRAIGHT swing arm mounted on a horizontal surface mounting base. At the free end of the mount swing arm is a round 1.5" diameter ball. The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360 degree rotation and the ball and socket system allows a 180 degree vertical pivot with a 360 degree rotation.
Powder Coated Marine Grade Aluminum
1.5" Rubber Ball Size
The "U" in the part number reflects product packaged in poly bag.
|Ball and socket size||Material||Vehicle||Mount function||Product Type||Packaging|
|C size 1.5" (Holds up to 4 lbs)||Powder Coated Marine Grade Aluminum||Boat||Drill Down||Base With Arm||Packaged in Poly Bag|
