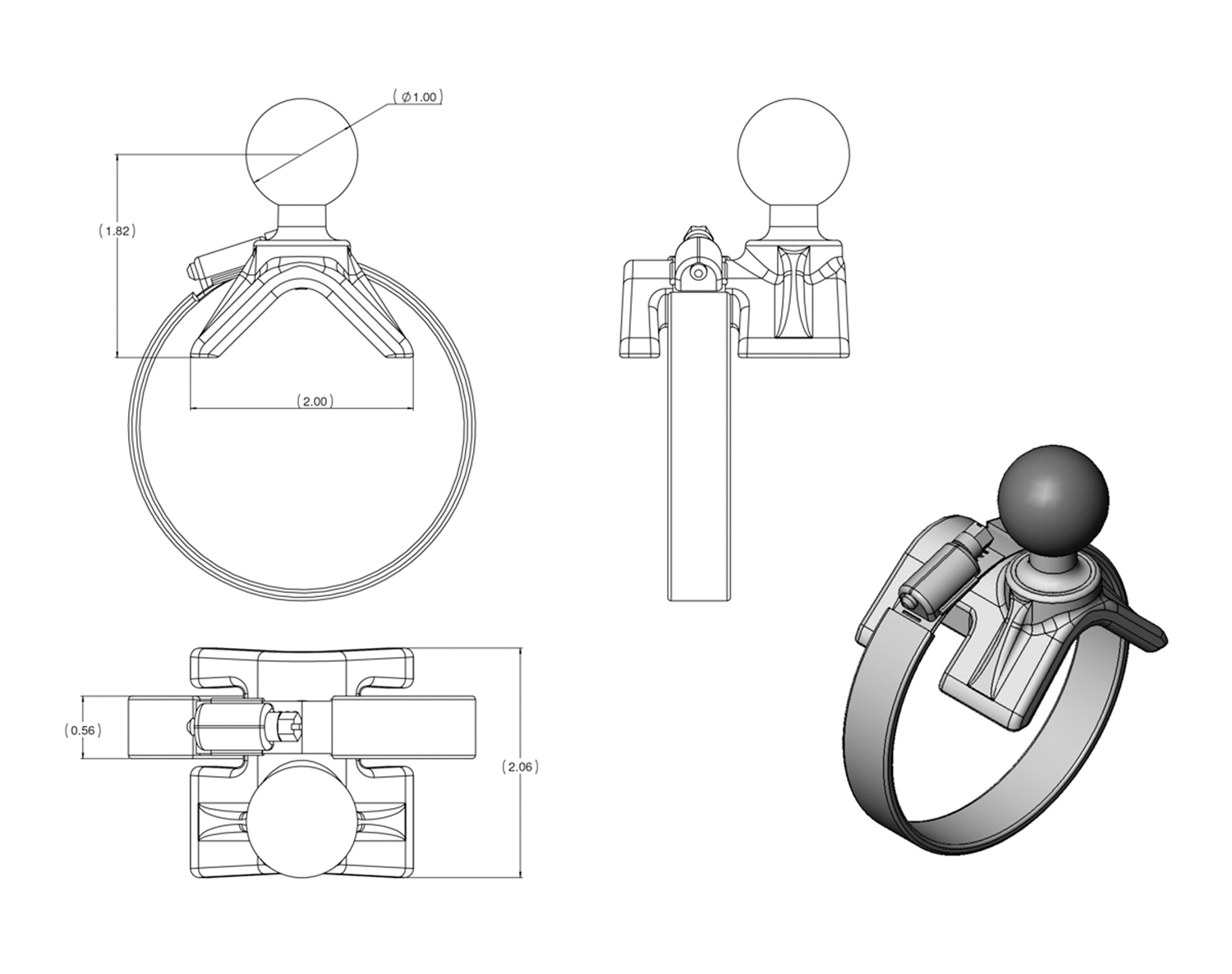

The RAM-B-108B-A-366 consists of a v-shaped strap base, short double socket arm and 1" ball with 1/4"-20 threaded stell stud. The base accommodates rails from 1.0" to a maximum of 2.1" in diameter. To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The camera plate provides extra support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.
Included in Kit:
(1) QTY 6" long metal strap
(1) QTY 8" long metal strap
(1) QTY 5.5" rubber strip that supports the metal straps to avoiding scratching or marking of the rail
Short Double Socket Arm
1" Ball with 1/4"-20 Camera Threaded Adapter
Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1" Rubber "B" Ball Size
Note:
Part number reflects product packaged in clear clam shell for store shelf display.
B size 1" (Holds up to 2 lbs)
Powder Coated Marine Grade Aluminum
Motorcycle
ATV / UTV
Camera
Handlebar/Rail
Mounts
Retail Packaging
Short Arm
Cameras
that contain 1/4"-20 Female Threaded Hole
