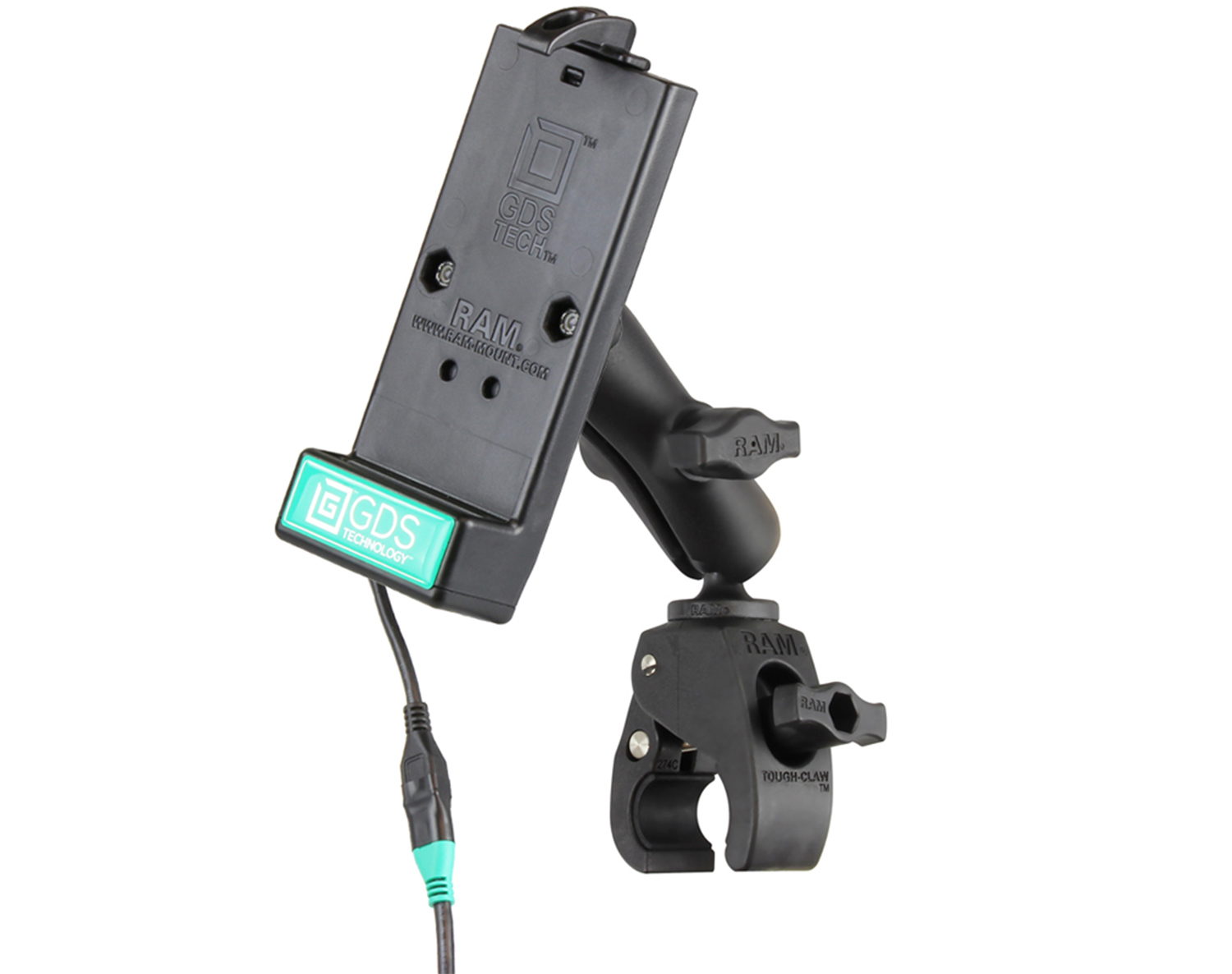

The RAM-B-400-GDS-DOCK-V1U consists of the Tough-Claw™ rail clamp base, standard length double socket arm and the RAM® Universal Vehicle Phone Dock with GDS® Technology. The Tough-Claw™ rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

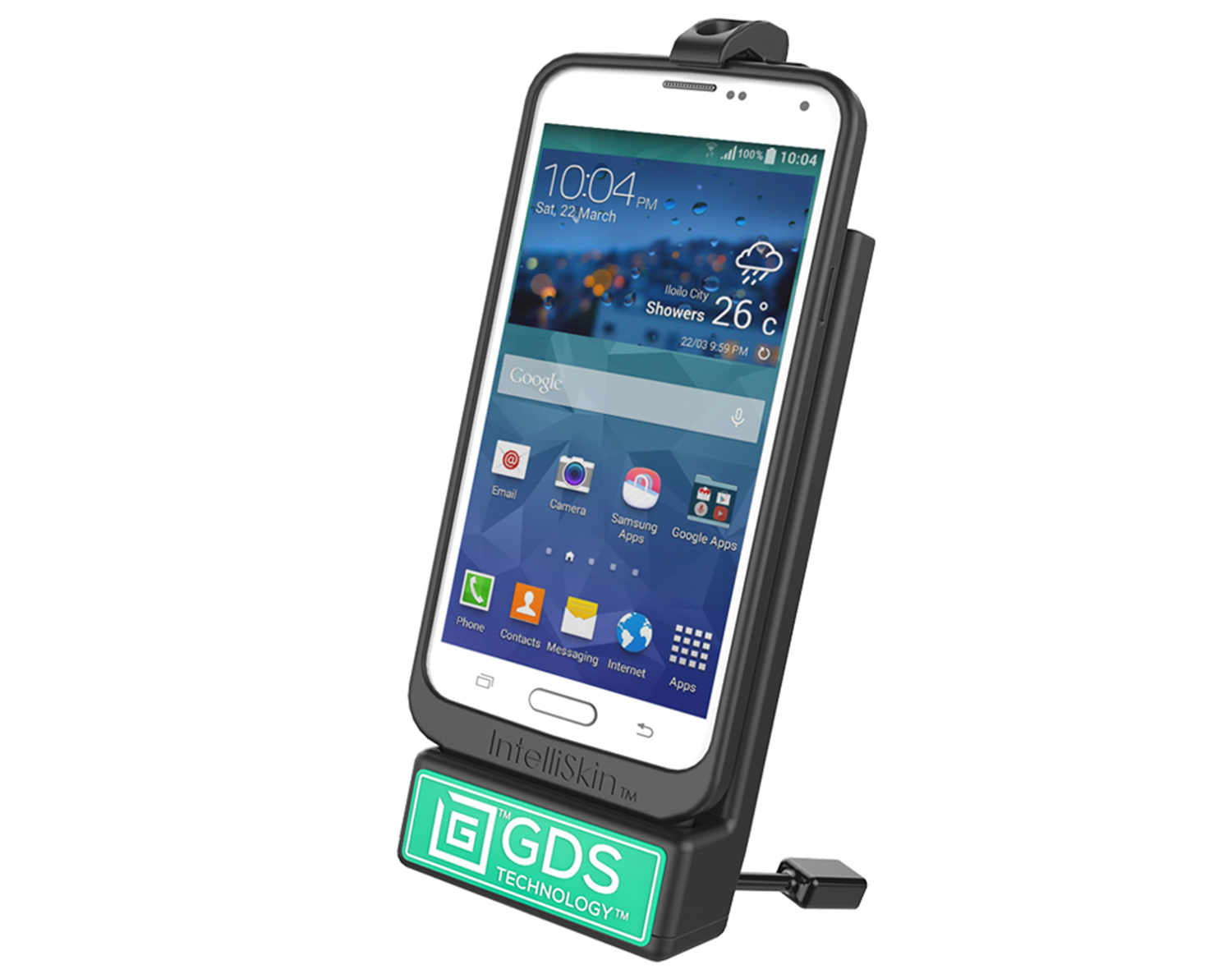

The vehicle dock is a spring loaded, quick release cradle that offers a secure fit with easy access to the mounted phone or phablet; compatible with any phone or phablet wrapped in IntelliSkin®. The integrated GDS Technology™ platform enables charging of the mounted device and safely secures the phone in a variety of vibration application. Without the need to remove the IntelliSkin® from the device, the user can quickly and efficiently mount the device in the vehicle dock and keep the device charged.
Clamping Range (Rail/Tube Surfaces):
0.625" to 1.5"
Clamping Range (Flat Surfaces):
0" to 1.14"
Specifications:
• Max power 5V-12V @ 2A*
Material:
High Strength Composite and Powder Coated Marine Grade Aluminum
Ball Size:
1" Rubber Ball "B" Size
Note:
The "U" in the part number reflects product packaged in poly bag.
* mUSB products supporting USB 2.0/3.0 will have a max current of 1.5A
B size 1" (Holds up to 2 lbs)
High Strength Composite
Powder Coated Marine Grade Aluminum
Mounts with Holder
Phone
Motorcycle
Flat Edge Clamp
Handlebar/Rail
GDS Tech
IntelliSkin
Tough-Claw
Packaged in Poly Bag
Medium Arm
