RAM Single Socket Arm with 1/2" NPT Female Hole for C Size 1.5" Balls

Brand RAM Mounts
Item #006631
Availability :Available on order - (14 Weeks)

RAM Single Socket Arm with 1/2" NPT Female Hole for C Size 1.5" Balls

Part No RAM-200-1

15.800KWD
  • PRODUCT DESCRIPTION

  • PRODUCT SPECIFICATIONS

  • APPLICATIONS

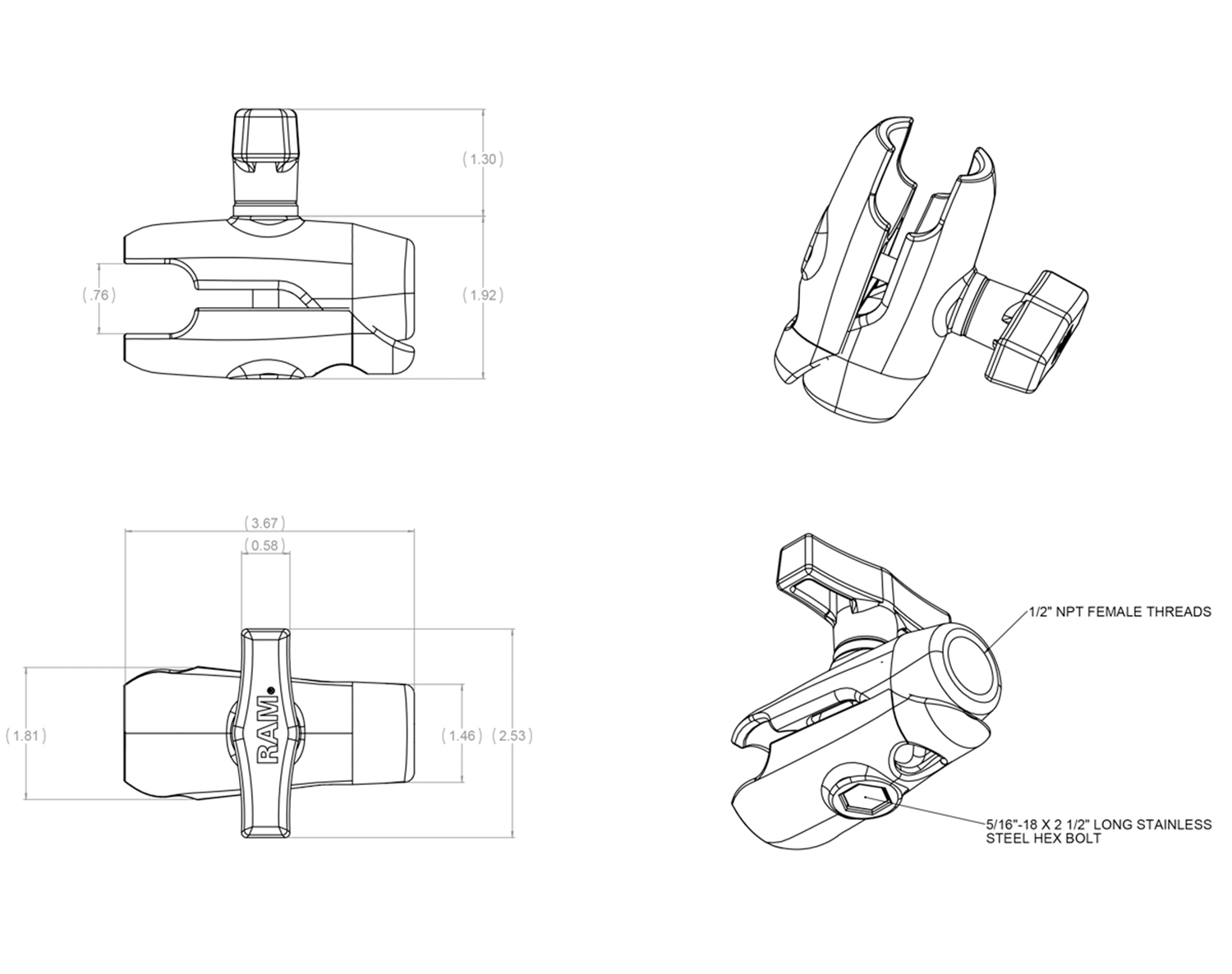

The RAM-200-1 includes a single socket that will accommodate 1.5" balls and a 1/2" NPT Female thread. This part will connect to 1/2" NPT Male threads, including RAM-PA82XX rigid arms.





Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1.5" Rubber Ball Size

Note:
Part number reflects product packaged in clear clam shell for store shelf display.

NPT Thread and Pipe Sizing:
NPT (National Pipe Thread) is a standard used in joining pipes and fittings that have a tapered thread. As a general rule, the NPT inch size is the inside diameter of the threaded pipe and is known as the NPS (Nominal Pipe Size). The outer diameter (OD) of the pipe is shown in the table below:

NPT Size (NPS) Pipe Outer Dia. (OD) Threads per inch
1/4" 0.540" 18
1/2" 0.840" 14
1" 1.315" 11.5

Ball and socket size

  • C size 1.5" (Holds up to 4 lbs)

Material

  • Powder Coated Marine Grade Aluminum

Product Type

  • Adapter

Packaging

  • Retail Packaging
