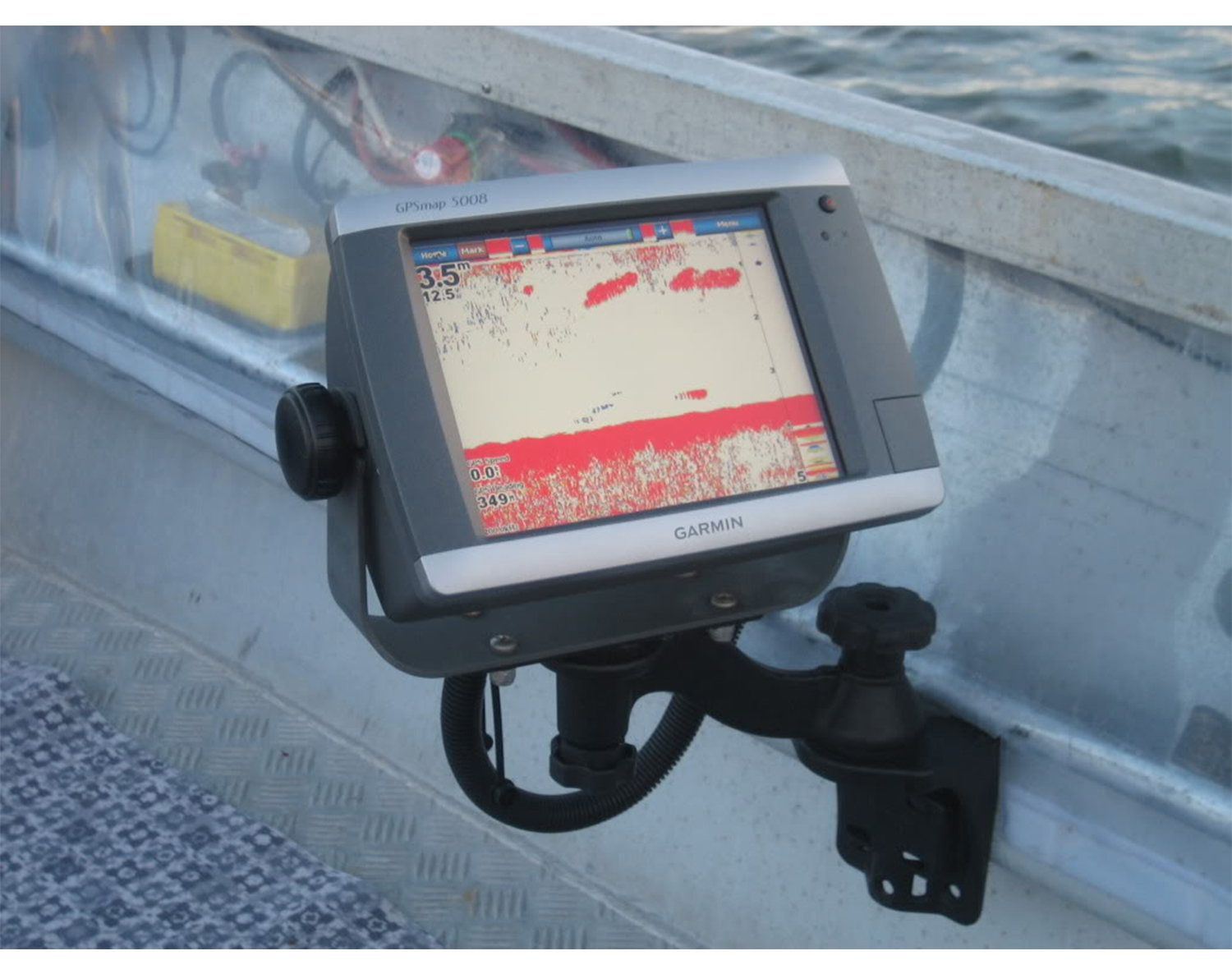

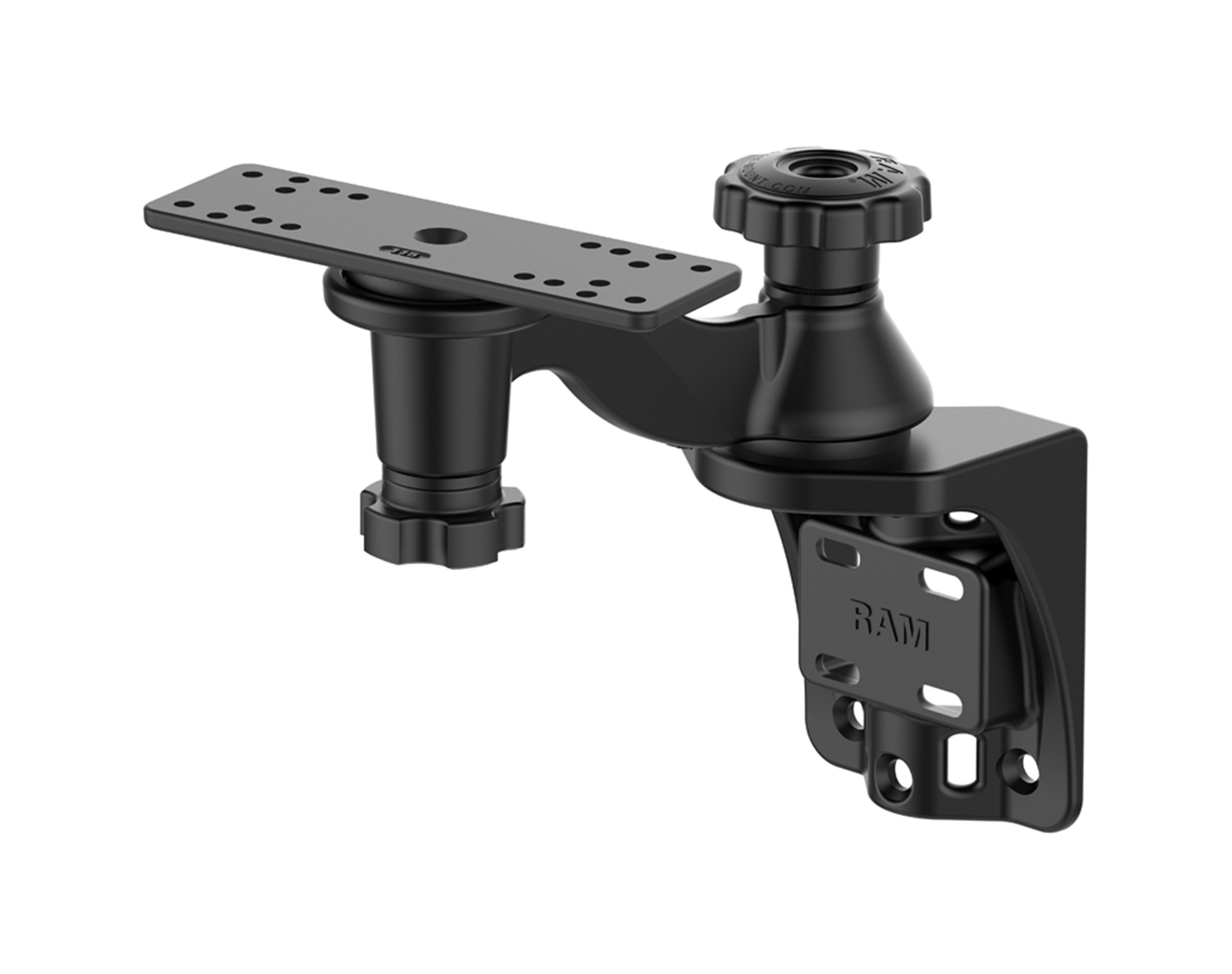

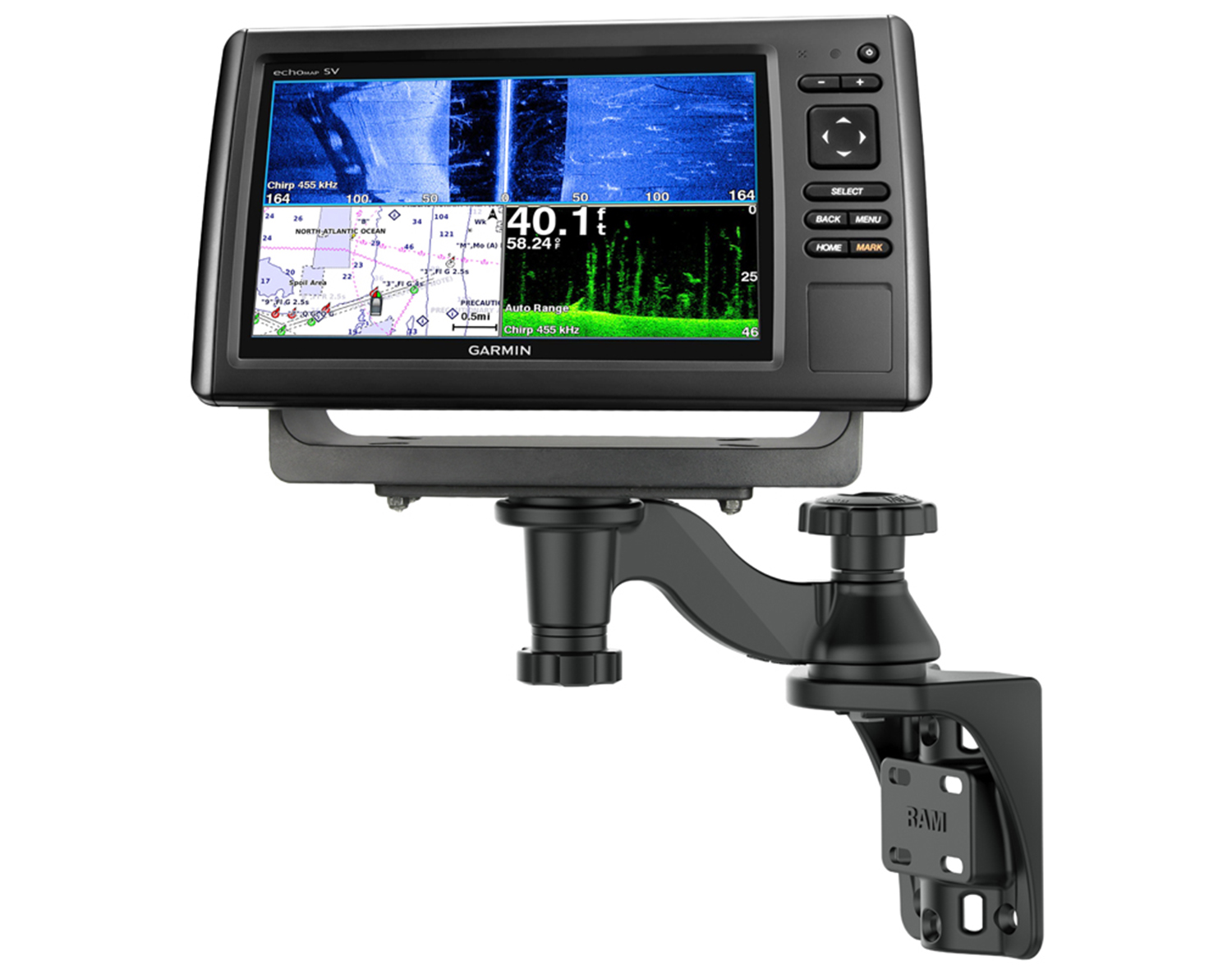

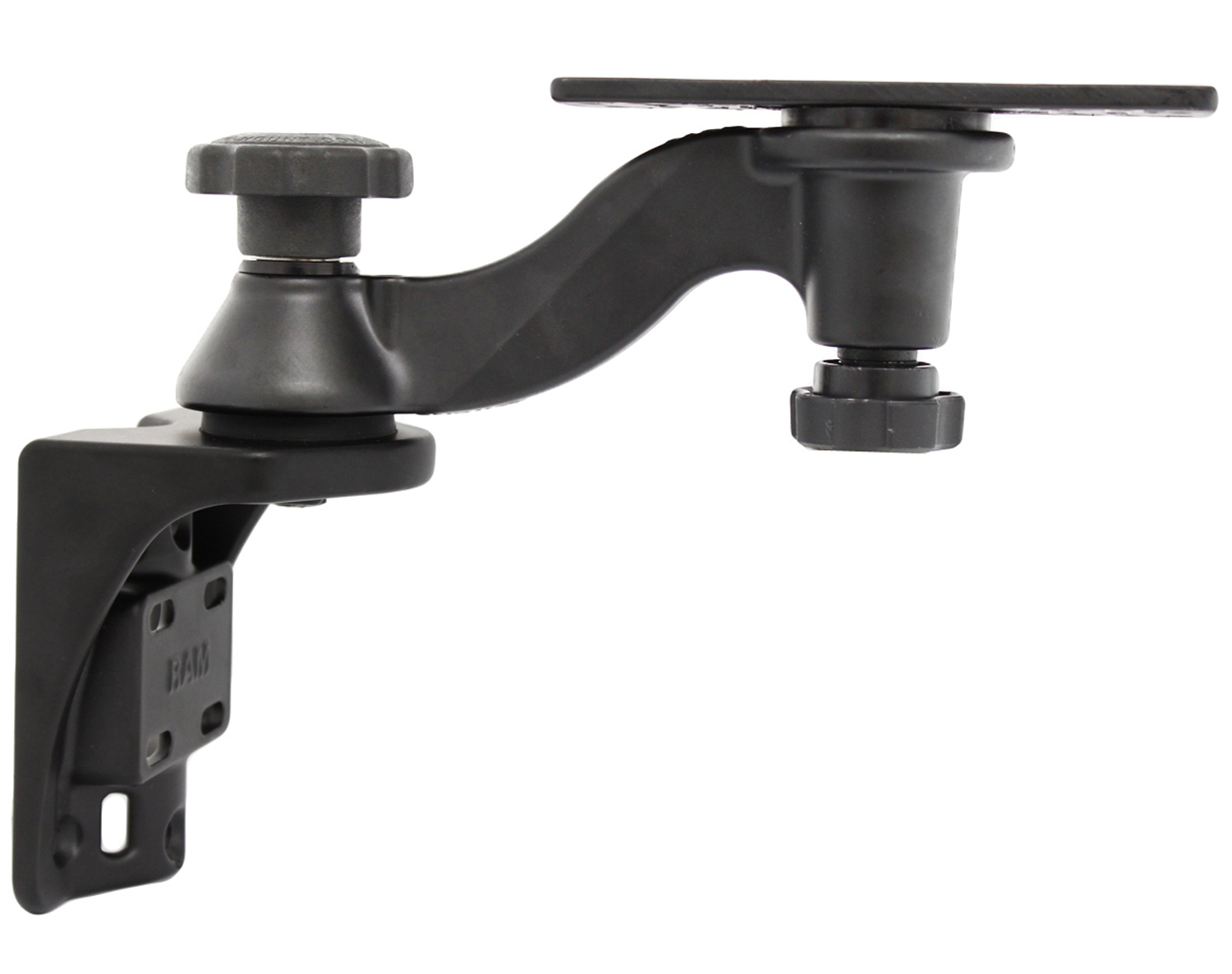

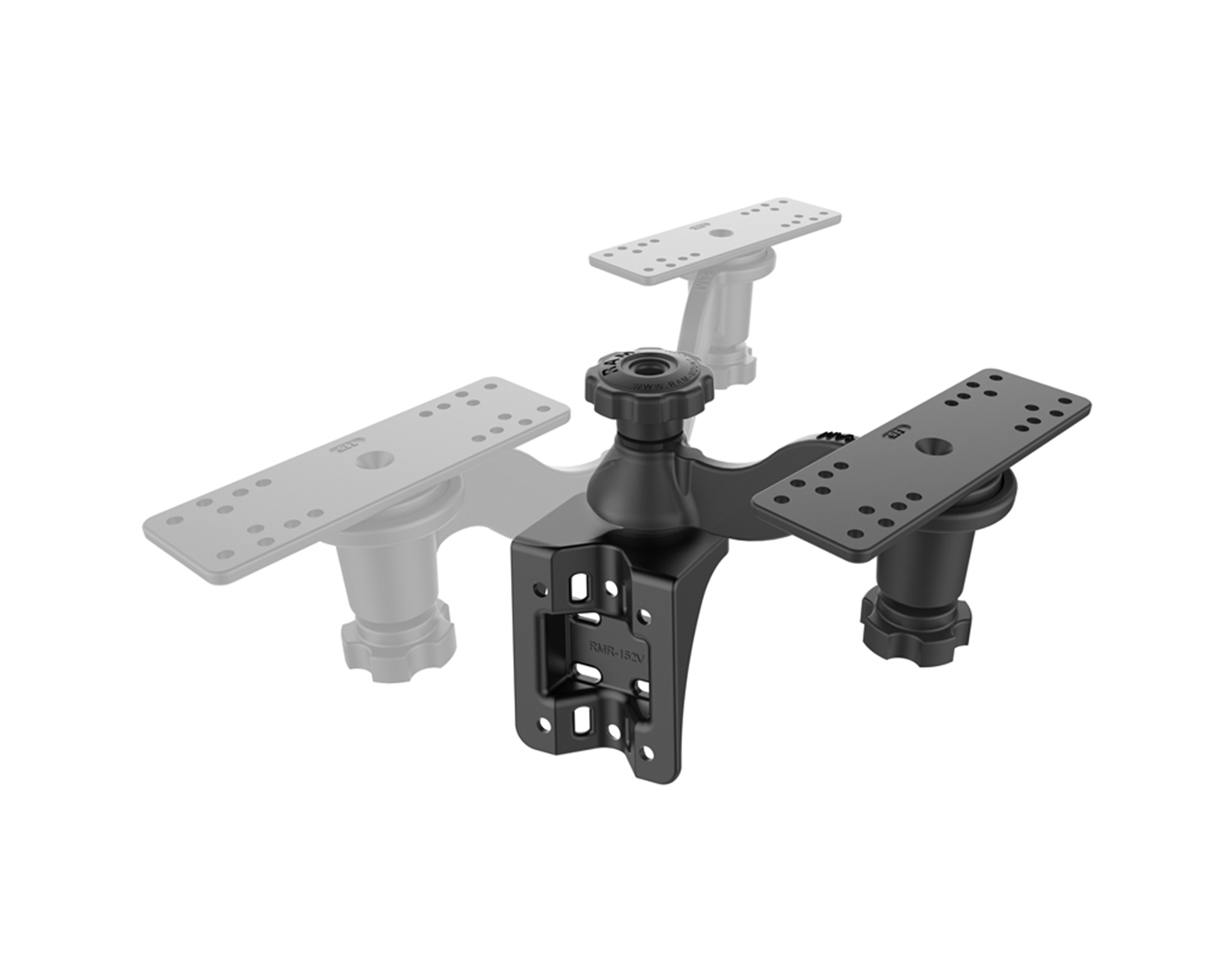

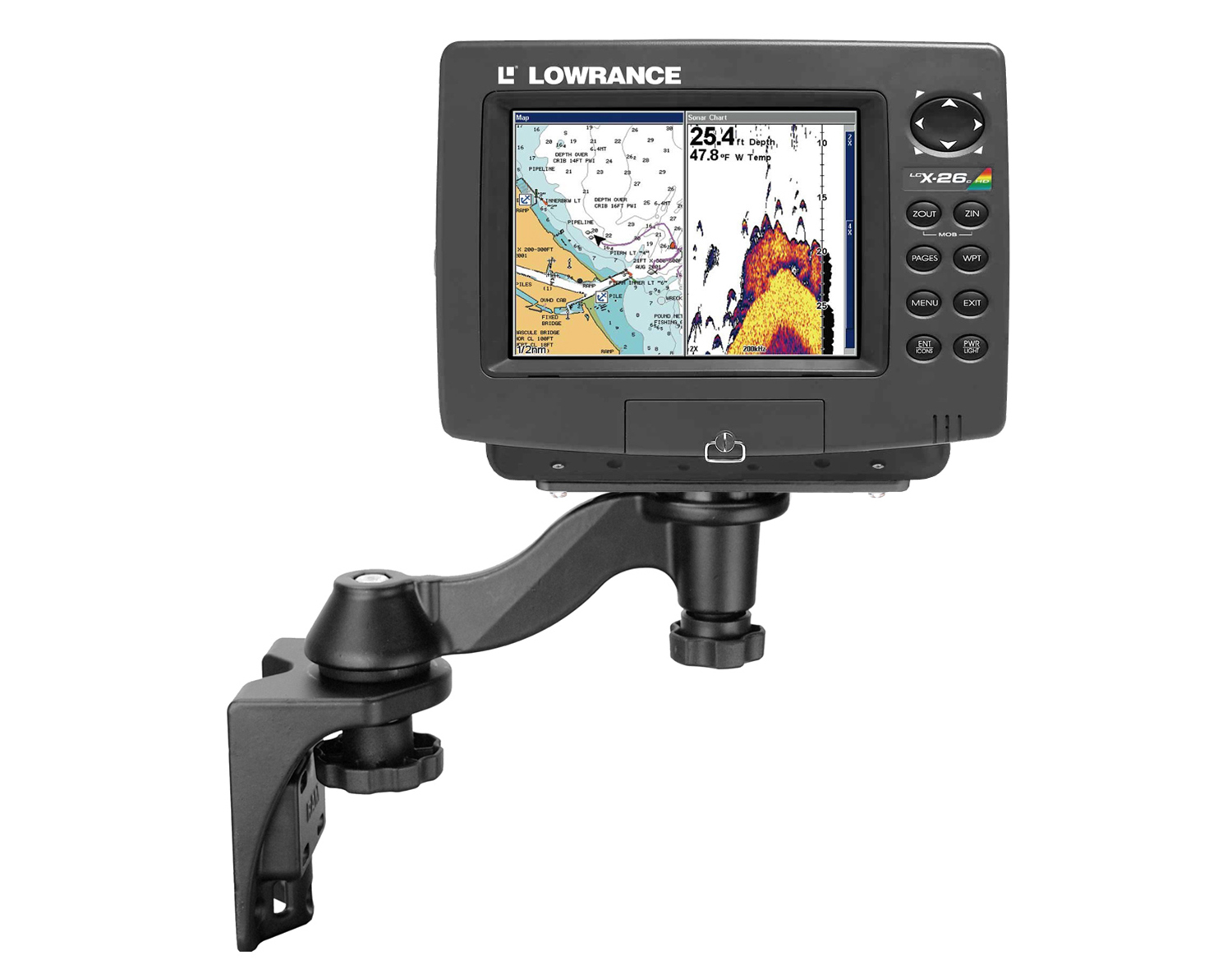

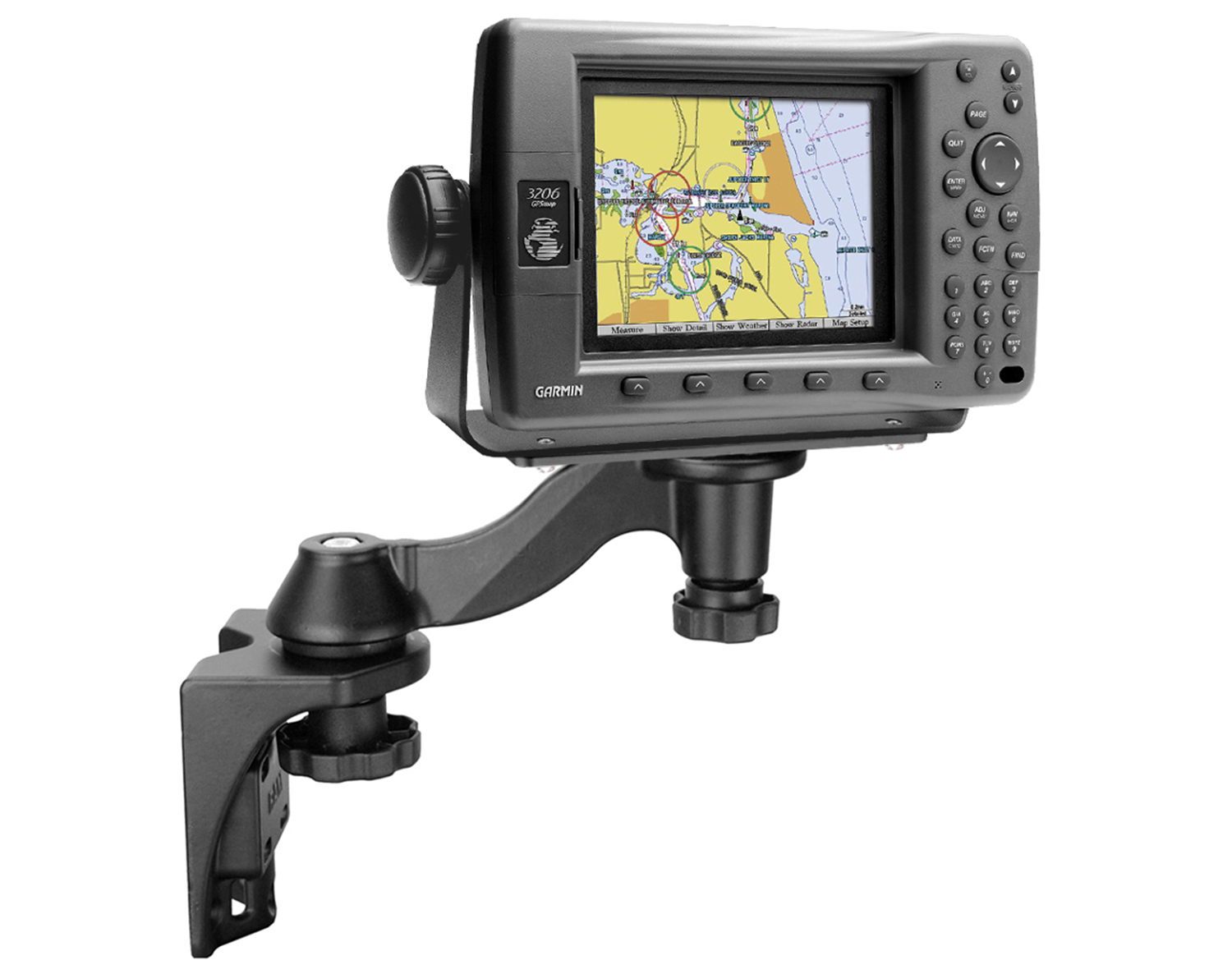

The RAM single swing arm mount consists of a 6" long swing arm mounted on a vertical surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.
Max Weight Capacity:
10 lbs.
Dimensions:
A. Center of knob to center of ball socket: 6"
B. Overall length of swing arm assembly: 11.4375"
C. Overall height: 8.45"
Material:
Powder Coated Marine Grade Aluminum
Note:
Part number reflects product packaged in clear clam shell for store shelf display. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Powder Coated Marine Grade Aluminum
Fishfinder/Chartplotter
Boat
Drill Down
Mounts
Retail Packaging
Garmin
Lowrance
Raymarine
Humminbird
echoMAP Chirp 72-95 Series
ECHOMAP Plus 92-97 Series
GPSMAP 722
GPSMAP 722xs
GPSMAP 742
GPSMAP 742xs
GPSMAP 8410
GPSMAP 8410xsv
GPSMAP 8412
GPSMAP 8412xsv
GPSMAP 8610
GPSMAP 8610xsv
GPSMAP 8612
GPSMAP 8612xsv
GPSMAP 922
GPSMAP 922xs
GPSMAP 942
GPSMAP 942xs
Striker Plus 5cv
Striker Plus 7cv
Striker Plus 7sv
Striker Plus 9sv
Fishfinders and GPS Chartplotters
Helix 8
Helix 9
Helix 10
Helix 12
HDS Carbon 7
HDS LIVE 7
HDS LIVE 9
HDS LIVE 12
Hook Reveal 7 Series
Hook Reveal 9 Series
HOOK-9
