RAM M10 X 1.25 Pitch Male Thread with 1" Ball.

Brand RAM Mounts
Item #010086
Availability :Available on order - (14 Weeks)

RAM M10 X 1.25 Pitch Male Thread with 1" Ball

Part No RAM-B-349

10.000KWD

  • PRODUCT DESCRIPTION

  • PRODUCT SPECIFICATIONS

  • APPLICATIONS

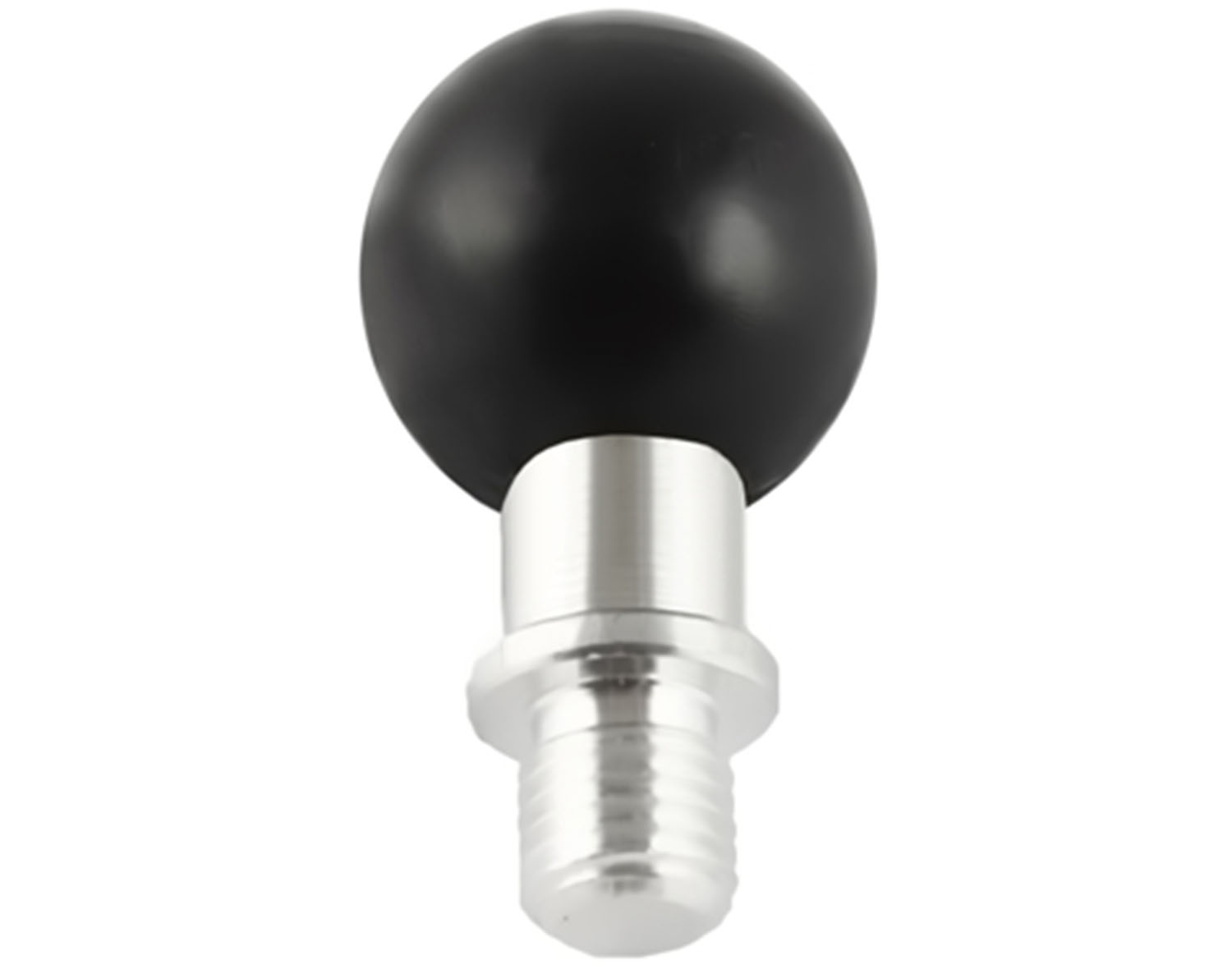

The RAM-B-349U includes a M10 x 1.25 pitch male thread connected to a 1" rubber ball.

Compatibility
Threaded hole must contain the following dimensions for this base to fit: M10 1.25 pitch with a 14.5mm flange diameter with a 10.15mm thread length.

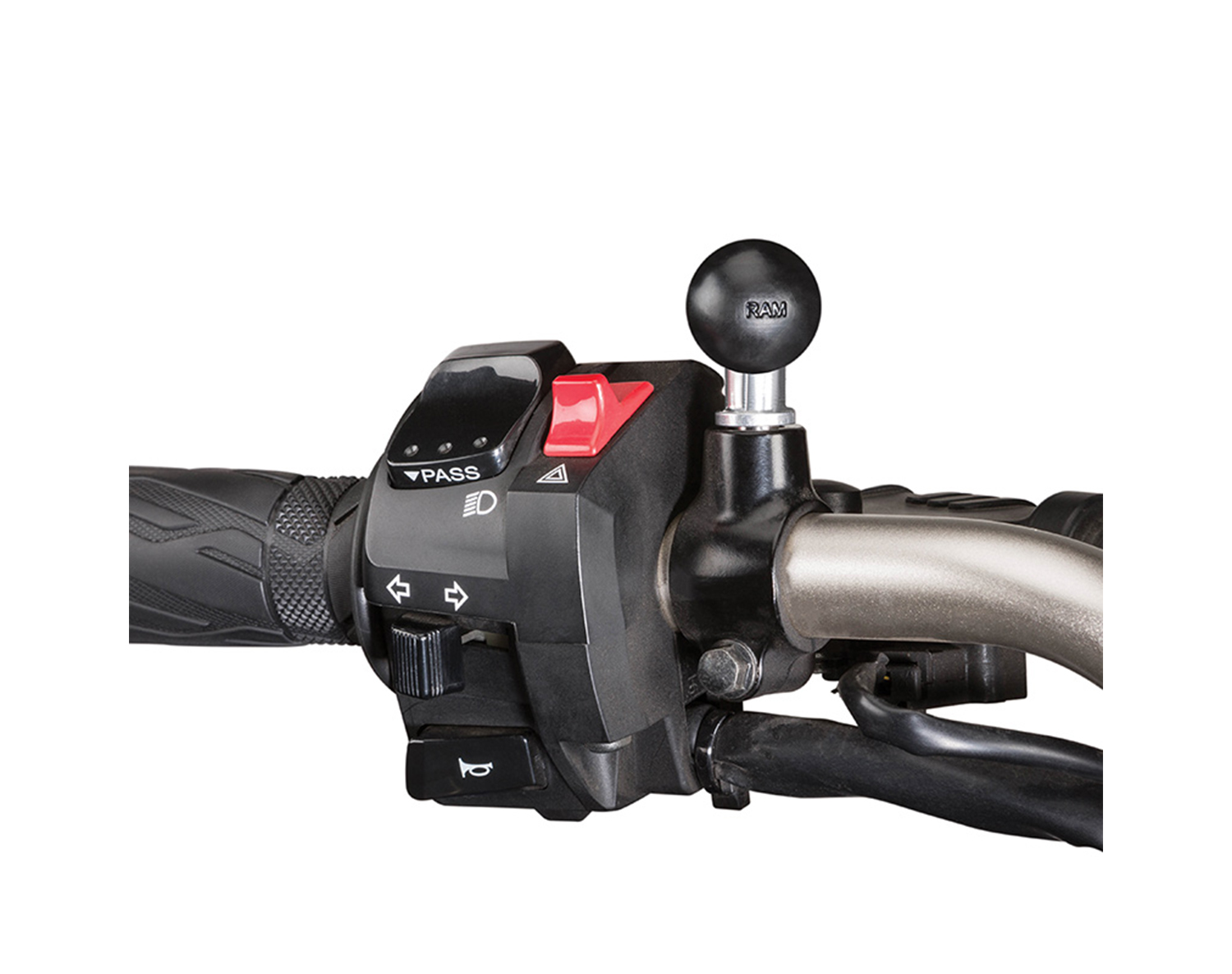

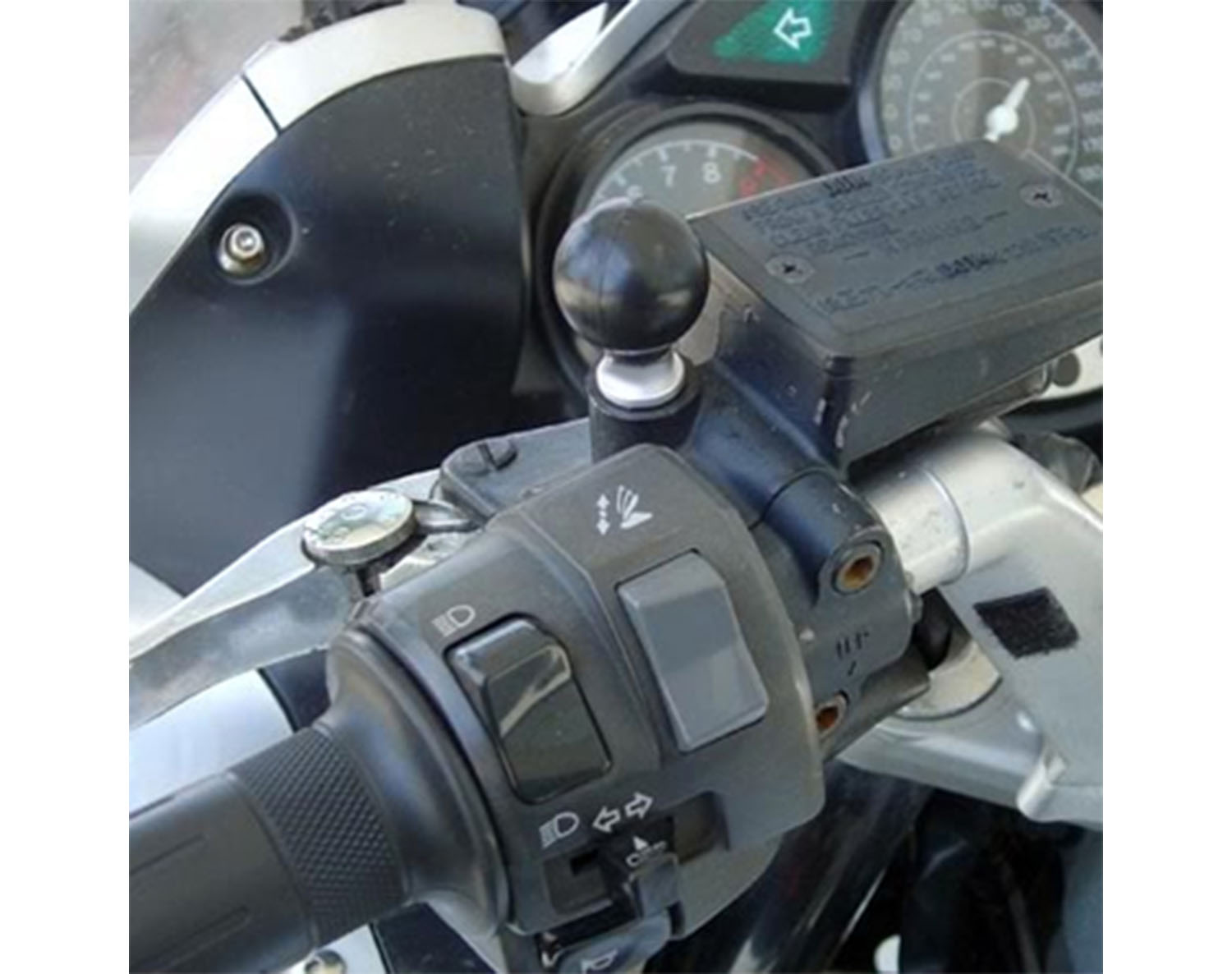

Compatible Motorcycles:
2014 Kawasaki Ninja 300
1989-2008 Kawasaki Ninja EX250R
2007 Kawasaki Ninja 650R
2007 Yamaha FJR1300A

Material
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size



Note:
The part number reflects product packaged in retail bag.

Ball and socket size

  • B size 1" (Holds up to 2 lbs)

Product Type

  • Holder

  • Base

  • Adapter

Material

  • Powder Coated Marine Grade Aluminum

Vehicle

  • Motorcycle

Mount function

  • Mirror Post

Packaging

  • Retail Packaging
