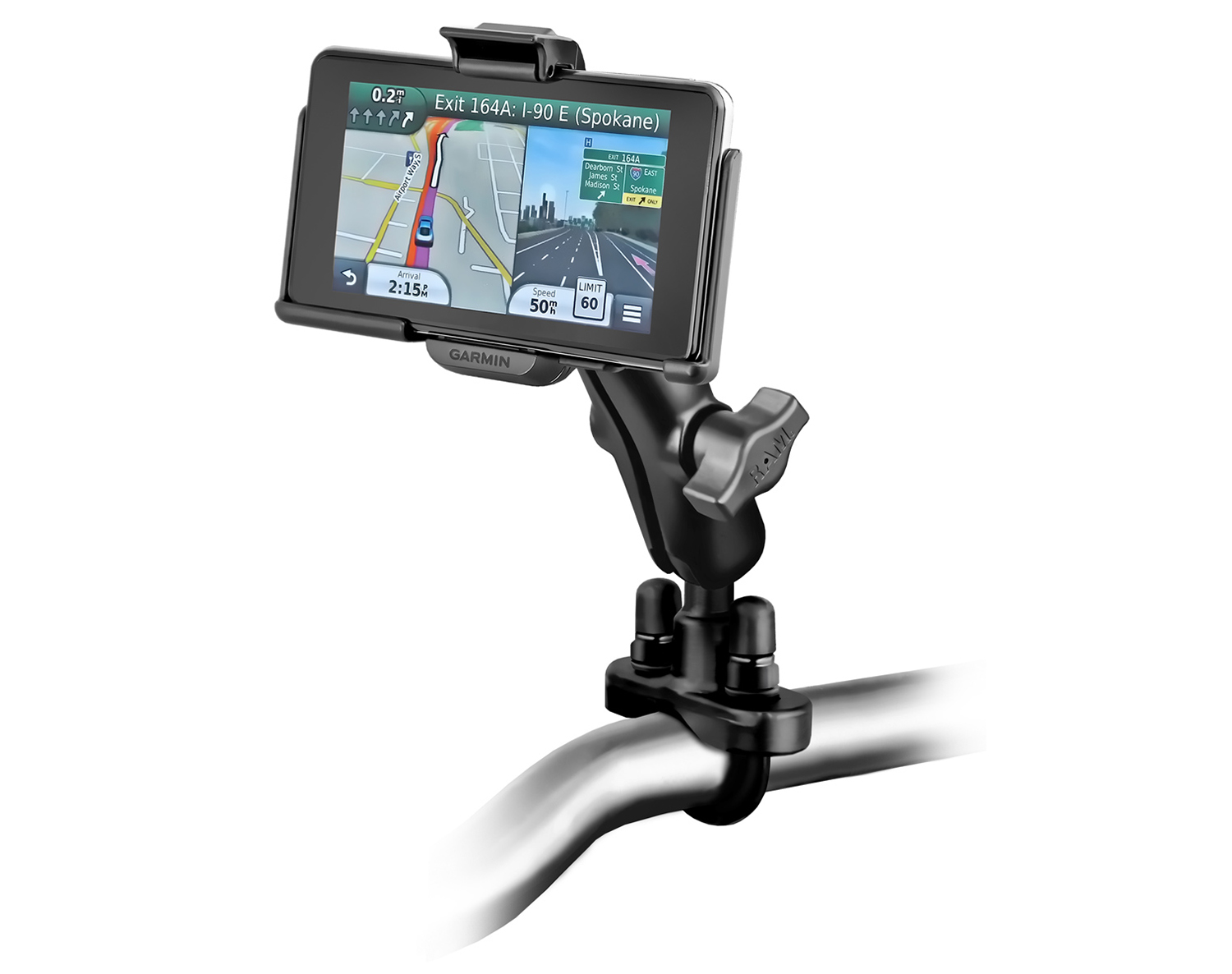

The RAM-B-149Z-GA39U consists of a zinc coated u-bolt base, double socket arm, diamond adapter base and high strength composite cradle for Garmin nuvi 3000 series GPS devices. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. Also included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".
U-Bolt Dimensions:
0.50" to 1.25"
Material:
High Strength Composite & Powder Coated Marine Grade Aluminum
Ball Size:
1" Rubber Ball "B" Size
Note:
The "U" in the part number reflects product packaged in poly bag.
B size 1" (Holds up to 2 lbs)
High Strength Composite
Powder Coated Marine Grade Aluminum
Mounts with Holder
Motorcycle
GPS
Handlebar/Rail
Custom Form-Fit
Packaged in Poly Bag
Medium Arm
Garmin
nuvi 3450
nuvi 3450LM
nuvi 3490LMT
nuvi 3750
nuvi 3760LMT
nuvi 3760T
nuvi 3790LMT
nuvi 3790T
