RAM Flat Surface Mount with LONG Double Socket Arm & Universal X-Grip® for 12" Tablets

Brand RAM Mounts
Item #007023
Availability :In Stock

RAM Flat Surface Mount with LONG Double Socket Arm & Universal X-Grip® for 12" Tablets

Part No RAM-B-101-C-UN11U

49.200KWD
Qty Sorry, In Stock
  • PRODUCT DESCRIPTION

  • PRODUCT SPECIFICATIONS

  • APPLICATIONS

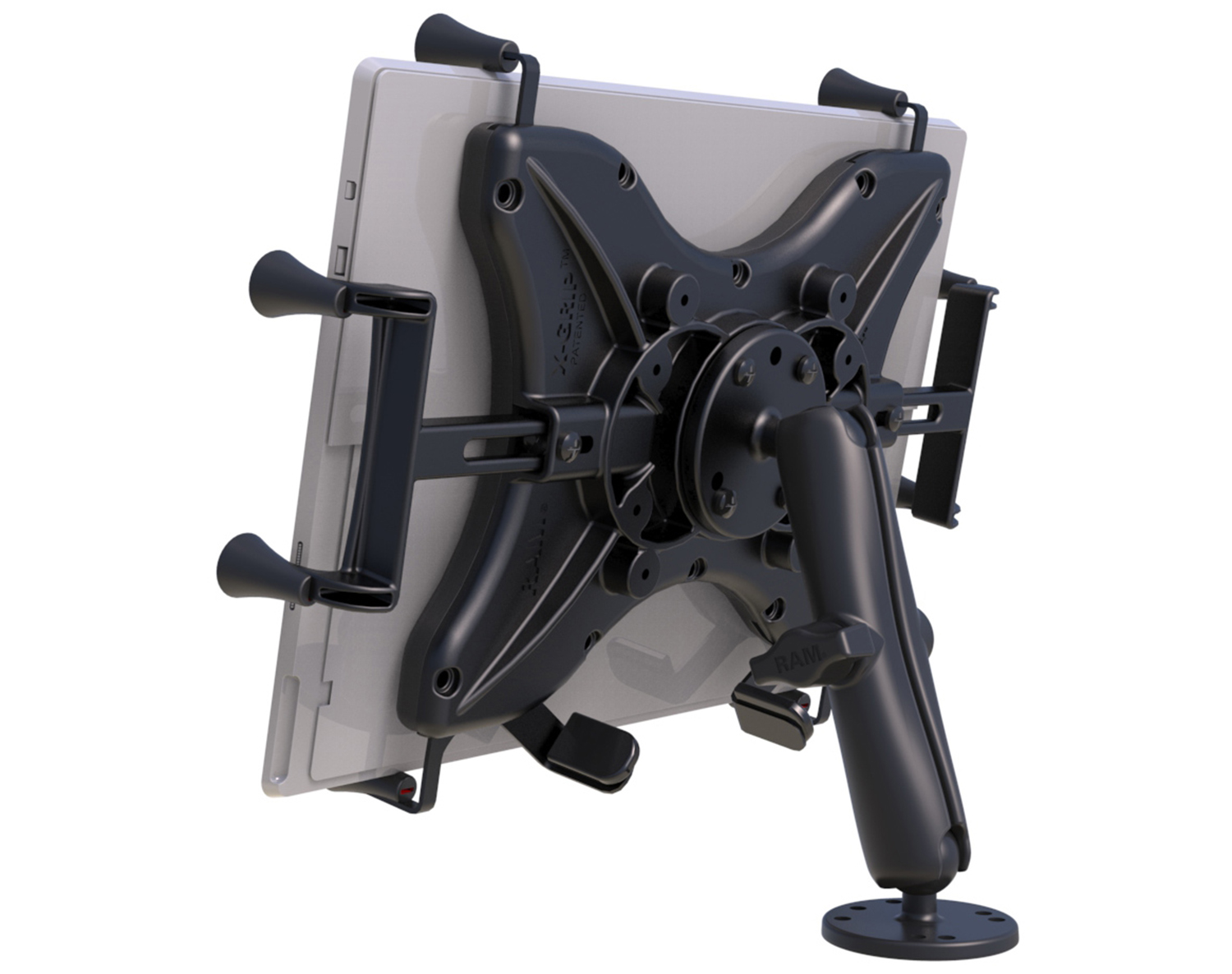

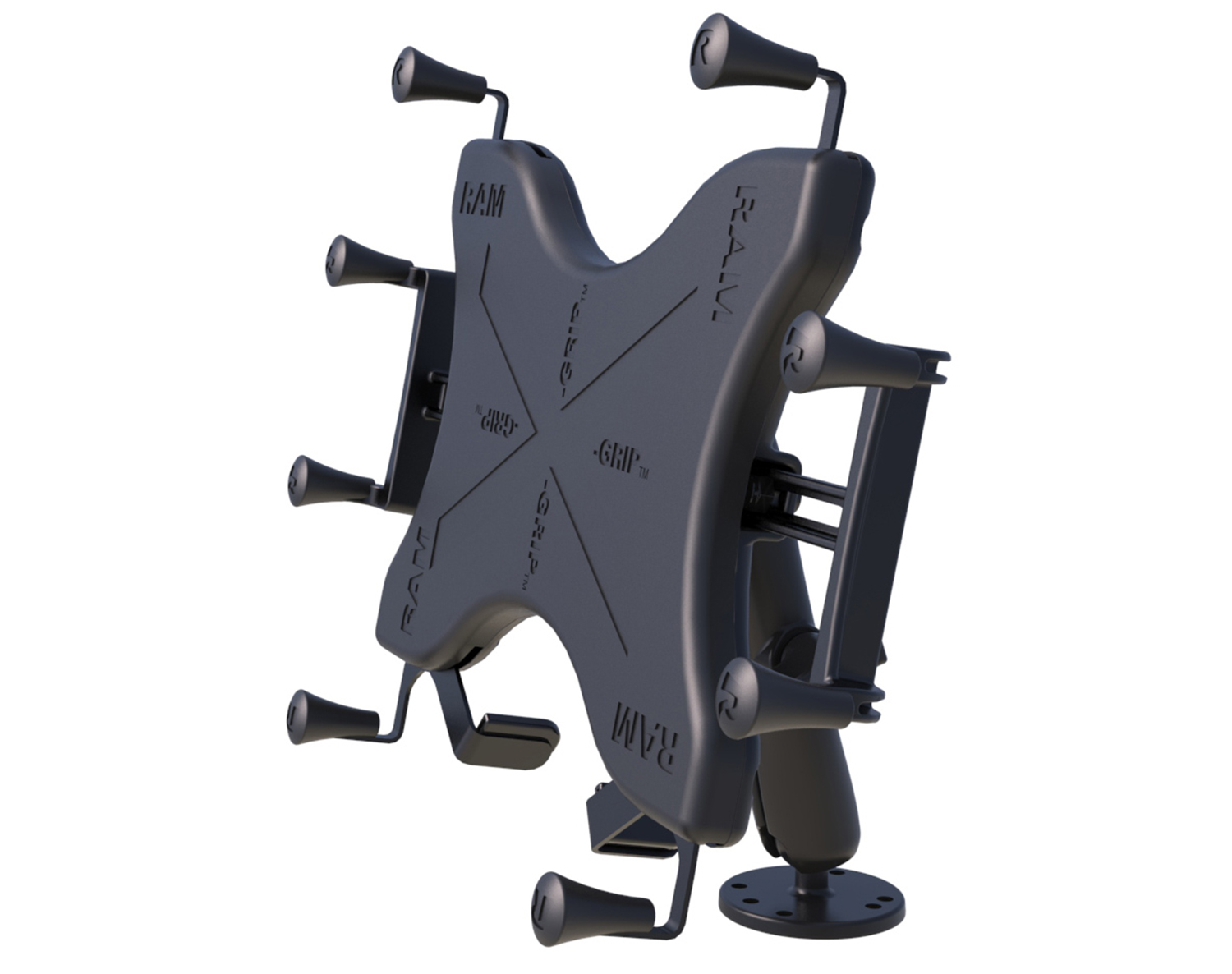

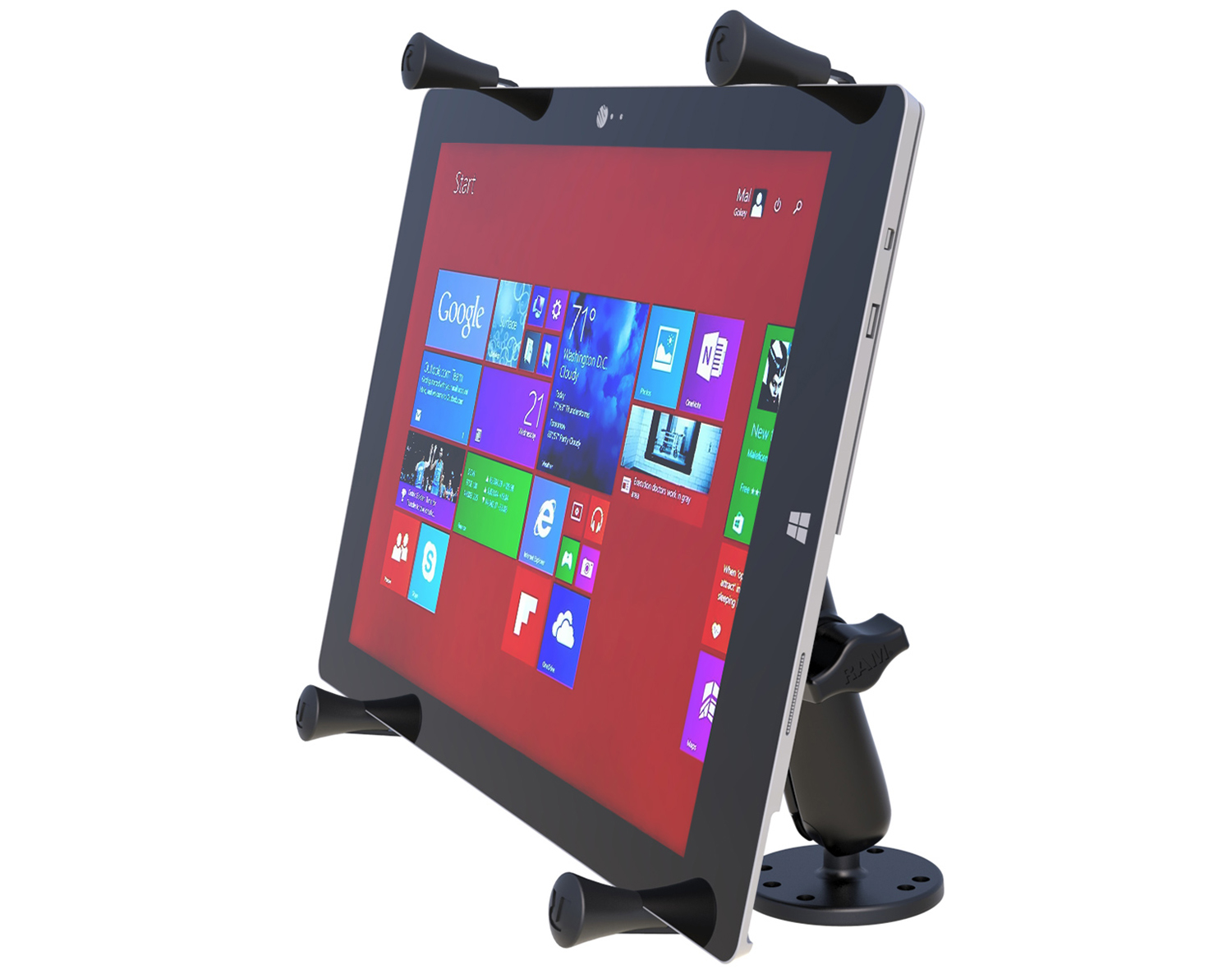

The RAM-B-101-C-UN11U consists of (2 QTY) 2.5" diameter round bases with the universal AMPS hole pattern, LONG double socket arm and universal X-Grip®  clamping cradle for 12" tablets. The X-Grip®  clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip®  clamping cradle expands and contracts for perfect fit of most 12" tablets with or without sleeves, as well as some smaller tablets.

The X-Grip®  cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.


Cradle Dimensions:
Minimum Width = 7.25”
Maximum Width = 8.75”
Maximum Length (WITHOUT additional supports) = Unlimited
Maximum Length (WITH additional supports) = 10.25”
Depth = 0.875"

The RAM-HOL-UN11U is compatible with the iPad Pro WITHOUT CASE ONLY.

un11 aniamation


X-Grip®  Features:
1. Spring loaded cradle expands and contracts for perfect fit of your tablet
2. Rubber coated tips will hold your tablet firm and stable
3. Versatility of cradle allows for attachment to many 1" socket mounts
4. Socket technology allows for multiple adjustment angles and articulation of your tablet
5. Easy access grip knobs, located on the back of the cradle for quick release of your tablet
6. Additional support keeper at the bottom of the cradle
8. Full access to all ports
9. Lifetime warranty

Material:
Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite

Note:
The "U" in the part number reflects product packaged in poly bag.

Ball and socket size

  • B size 1" (Holds up to 2 lbs)

Material

  • High Strength Composite

  • Powder Coated Marine Grade Aluminum

  • Marine Grade Stainless Steel Components

Product Type

  • Mounts with Holder

Product Line

  • X-Grip

Device

  • Tablet

Mount function

  • Drill Down

Packaging

  • Packaged in Poly Bag

Device Brand

  • Apple

  • Google

  • Samsung

  • Dell

  • HP

  • Lenovo

  • Microsoft

  • Zebra

Device Model

  • iPad Pro 12.9 (1st Gen)

  • iPad Pro 12.9 (2nd Gen)

  • iPad Pro 12.9 (3rd Gen)

  • iPad Pro 12.9 (4th Gen)

  • Latitude 5285

  • Pixelbook

  • Elite X2 1012 G1

  • Elite X2 1012 G2

  • Pro X2 612

  • Pro X2 612 G1

  • IdeaTab Lynx K3011

  • Miix 720

  • Yoga A12

  • Surface 3

  • Surface Book

  • Surface Pro (2017)

  • Surface Pro 3

  • Surface Pro 4

  • Surface Pro 5

  • Surface Pro 6

  • Surface Pro 7

  • Surface Pro X

  • Galaxy Book 12"

  • Galaxy Pro 12.2

  • Galaxy TabPro S

  • R12 XSLATE
