RAM Combination Brake/Clutch Reservoir U-Bolt Mount with Universal X-Grip® Large Phone Cradle

Brand RAM Mounts
Item #008173
Availability :Available on order - (14 Weeks)

RAM Combination Brake/Clutch Reservoir U-Bolt Mount with Universal X-Grip® Large Phone Cradle

Part No RAM-B-174-UN10

29.400KWD
  • PRODUCT DESCRIPTION

  • PRODUCT SPECIFICATIONS

  • APPLICATIONS

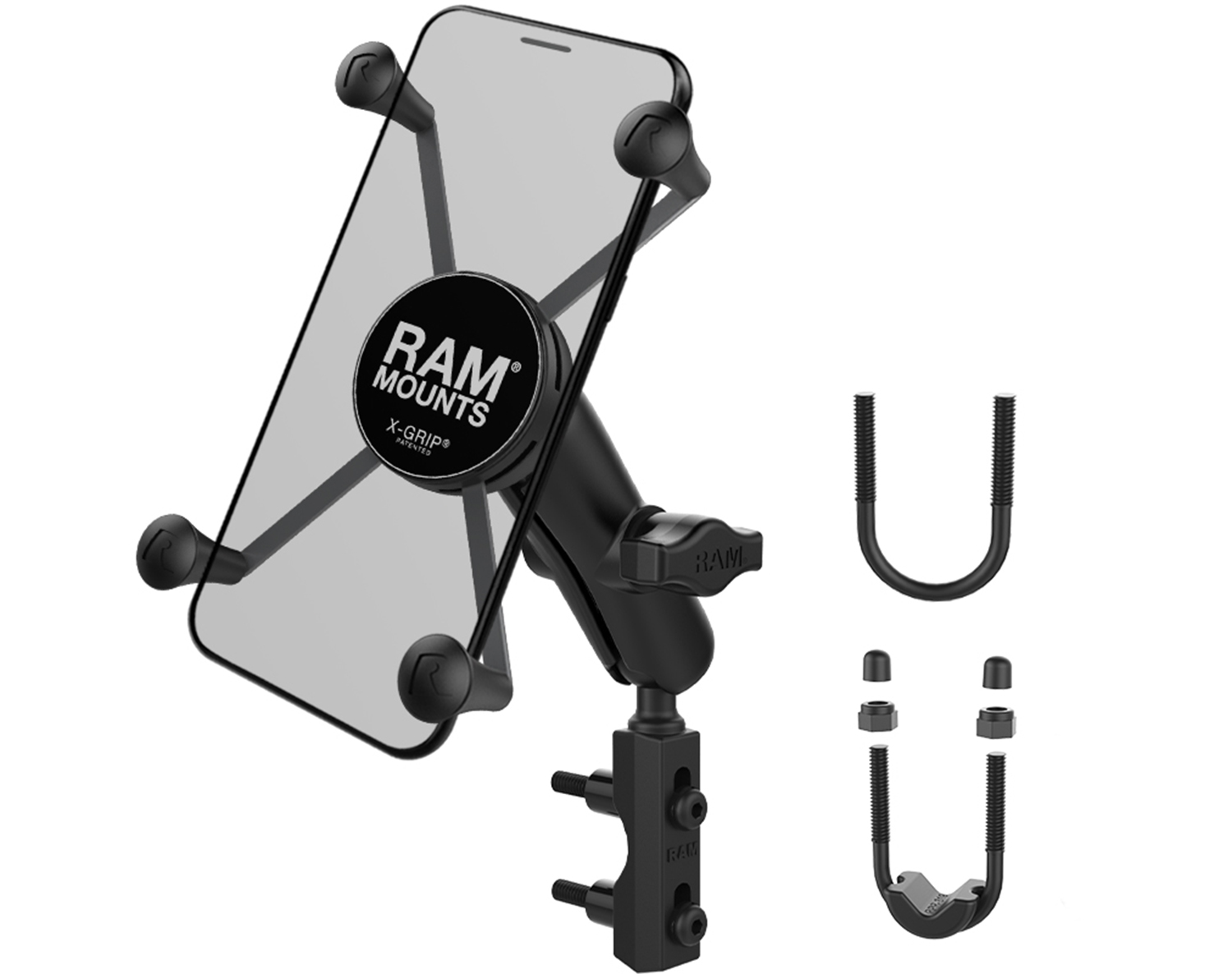

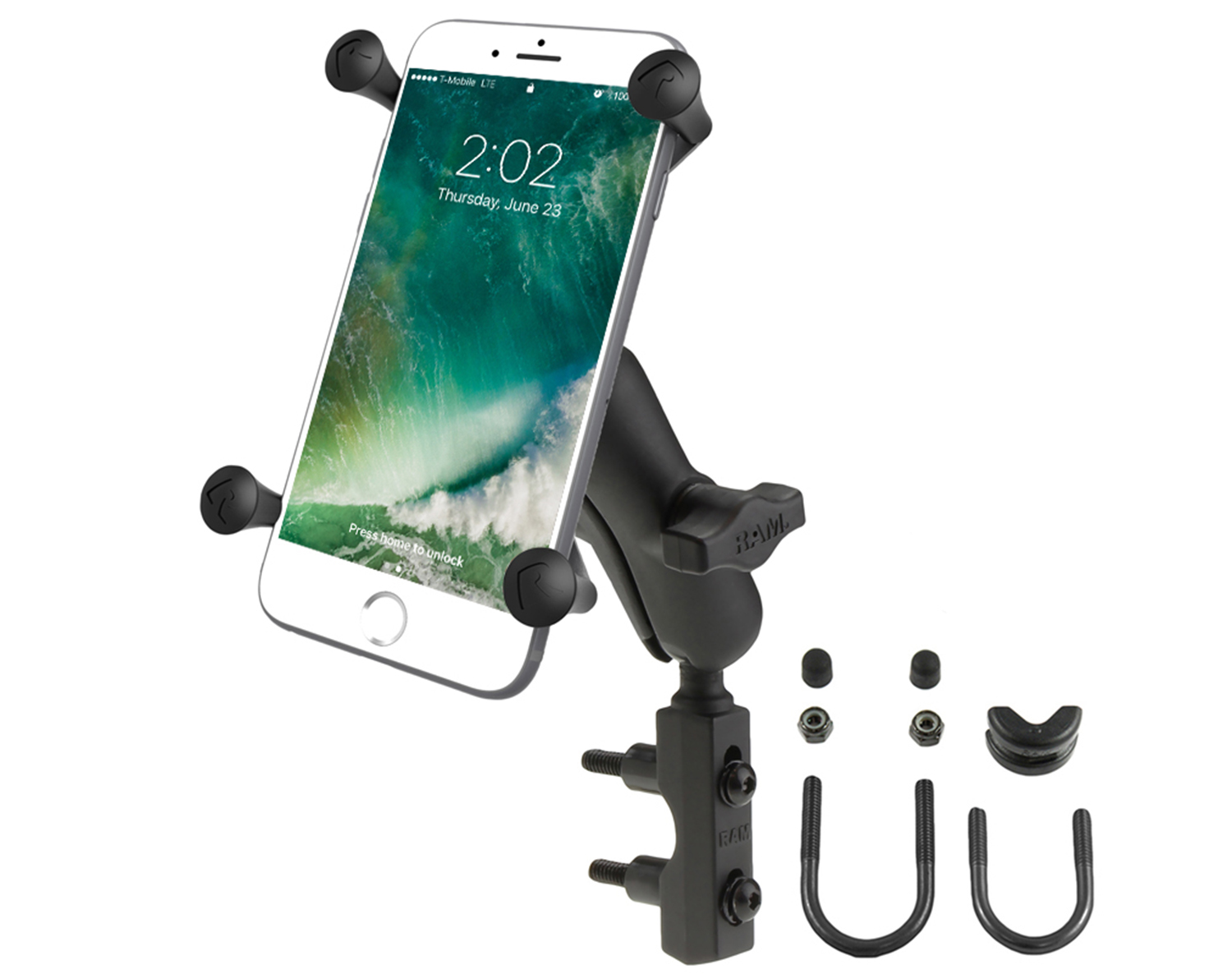

The RAM-B-174-UN10 consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and universal X-Grip® large phone/phablet holder. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip® mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved.

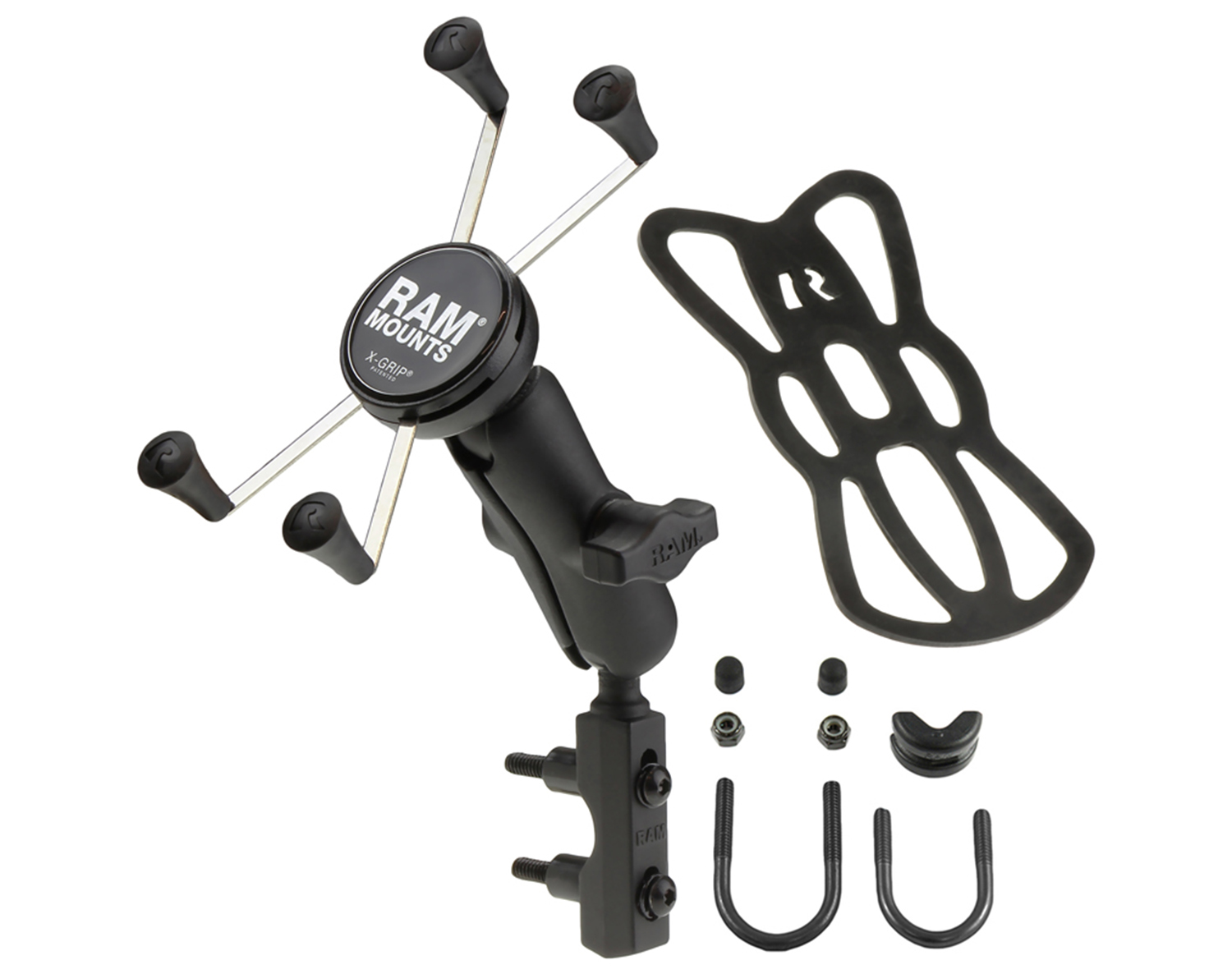

The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.


Cradle Dimensions:
Minimum Width = 1.75" (Minimum Height = 5.5")
Maximum Width = 4.5" (Minimum Height = 3.25")
Depth = 0.875"



un10 aniamation


Features:
1. Rustproof
2. High strength composite and stainless steel construction
3. Spring loaded cradle expands and contracts for perfect fit of your device
4. Rubber coated tips will hold device firm and stable
5. Socket technology allows for multiple adjustment angles and articulation of device
6. Includes Tether for open cockpit and extreme environments
7. Lifetime warranty
8. Made in U.S.A.

Material:
Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite

Ball Size:
1" Rubber Ball "B" Size

Note:

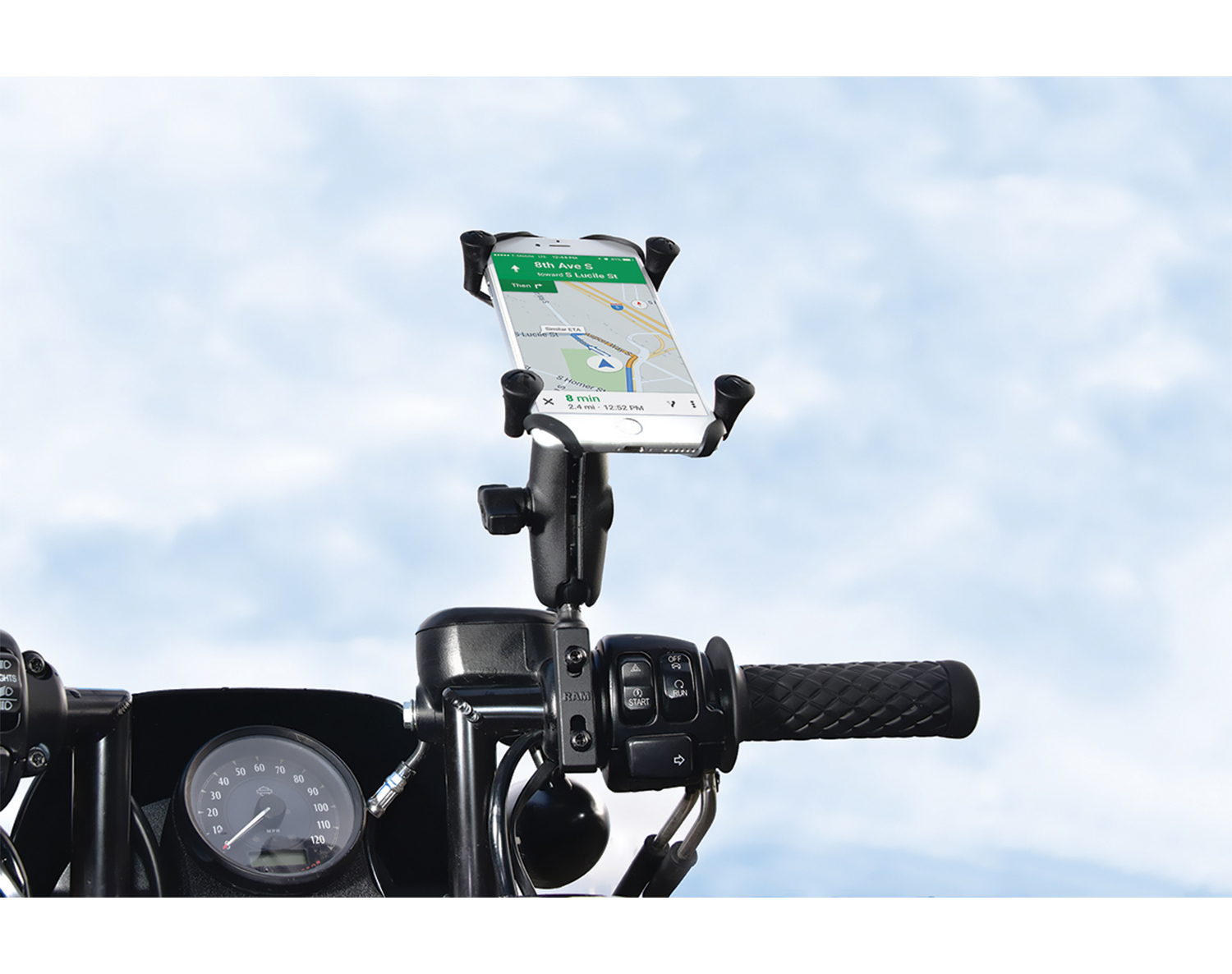

Part number reflects product packaged in a retail box for store shelf display. To see if the RAM-B-174-UN7 will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". RAM highly recommends using the provided Tether for all open cockpit applications while using this product.

Ball and socket size Material Product Type Device Product Line Vehicle Mount function Packaging Device Brand Device Model Arm
B size 1" (Holds up to 2 lbs) High Strength Composite Mounts with Holder Phone X-Grip Motorcycle Brake/Clutch Reservoir Retail Packaging Apple Iphone 11 Pro Max Medium Arm
Powder Coated Marine Grade Aluminum Handlebar/Rail Blackberry iPhone Xs Max
Marine Grade Stainless Steel Components Garmin iPhone 8 Plus
Google iPhone 7 Plus
HTC iPhone 6s Plus
Huawei Evolve X
LG Drive 50
Magellan Drive 51 LM
Motorola Drive 52
Rand Drive 61 LM
Razer DriveSmart 51 LMT-S
Samsung DriveSmart 61 LMT-S
Sony DriveTrack 71
Nuvi 2788LM
RV 660LMT
RV 770 LMT-S
Pixel 2 XL
Pixel 3 XL
Pixel 3a XL
Bolt
U Ultra
Mate 20 X
Fiesta 2 LTE
Fiesta LTE
G8S ThinQ
Harmony
Stylo 2 V
Stylo 3
Stylo 3 Plus Titan
Stylo 4
V20
V50 ThinQ
X charge
X venture
TR5
TR7
moto e4 plus
moto g4
moto z2
moto z2 play
moto z3
McNally Road Explorer 5
McNally TND 540
Phone 2
Galaxy A7
Galaxy A7 (2017)
Galaxy A7 (2018)
Galaxy A8
Galaxy A8 (2016)
Galaxy A9 (2016)
Galaxy A9 Pro (2016)
Galaxy A9 (2018)
Galaxy A70
Galaxy A80
Galaxy A90 5G
Galaxy C7
Galaxy C7 Pro
Galaxy C9 Pro
Galaxy E7
Galaxy Grand Neo Plus
Galaxy J7
Galaxy J7 Max
Galaxy J7 V
Galaxy Note 5
Galaxy Note 10 Plus
Galaxy On7
Galaxy S10 5G
Galaxy S8
Galaxy S8 Active
Xperia C4
Xperia L2
Xperia XA Ultra
Xperia XA1 Ultra
Xperia XA2 Ultra
Xperia XZ Premium
Galaxy Note20 Ultra
iPhone 12 Pro Max
Galaxy S21 Ultra 5G
