RAM Combination Brake/Clutch Reservoir U-Bolt Mount with Round Base Adapter that contains the AMPs Hole Pattern.

Brand RAM Mounts
Item #008085
Availability :Preorder - (2 Weeks)

RAM Combination Brake/Clutch Reservoir U-Bolt Mount with Round Base Adapter that contains the AMPs Hole Pattern

Part No RAM-B-174-202U

24.500KWD
Qty Sorry, Preorder - (2 Weeks)
  • PRODUCT DESCRIPTION

  • PRODUCT SPECIFICATIONS

  • APPLICATIONS

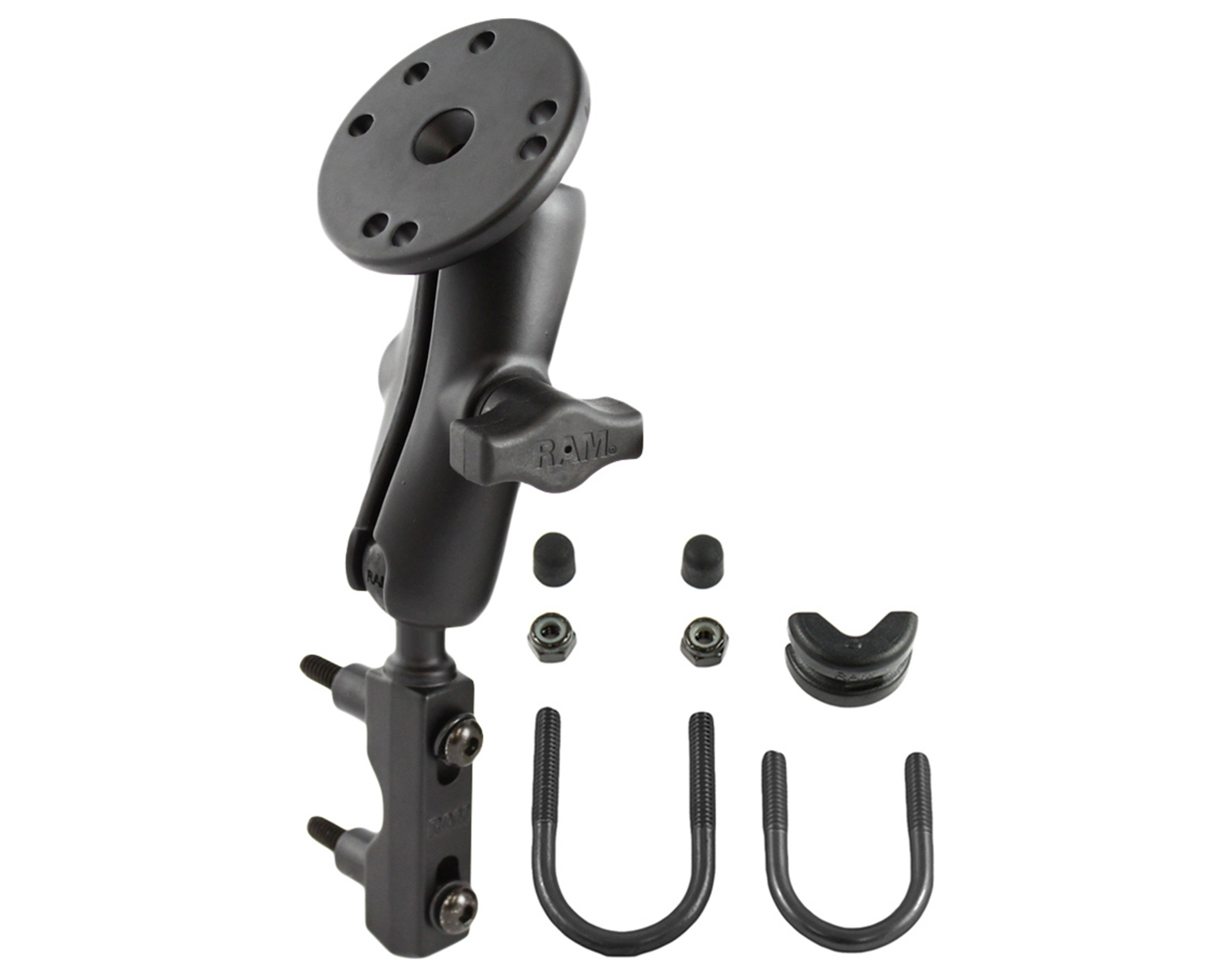

The RAM-B-174-202U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and 2.5" diameter round base adapter that contains the universal AMPs hole pattern. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.





Material:
Marine Grade Aluminum with Chrome Finish

Ball Size:
1" Rubber Ball "B" Size

Note:
The "U" in the part number reflects product packaged in poly bag. This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".

Ball and socket size

  • B size 1" (Holds up to 2 lbs)

Vehicle

  • Motorcycle

Mount function

  • Brake/Clutch Reservoir

  • Handlebar/Rail

Material

  • Marine Grade Aluminum with Chrome Finish

Product Type

  • Mounts

Packaging

  • Packaged in Poly Bag

Arm

  • Medium Arm
