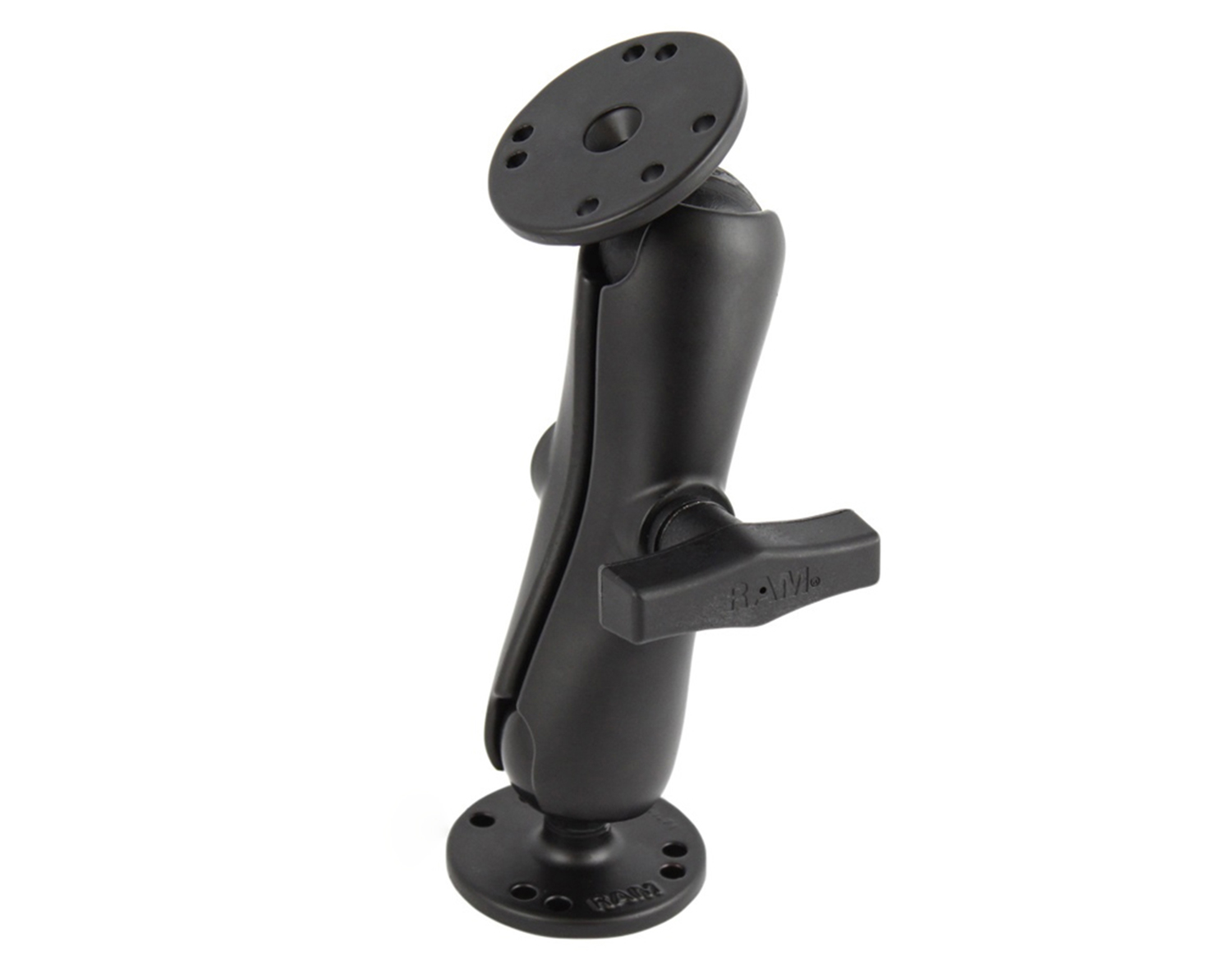

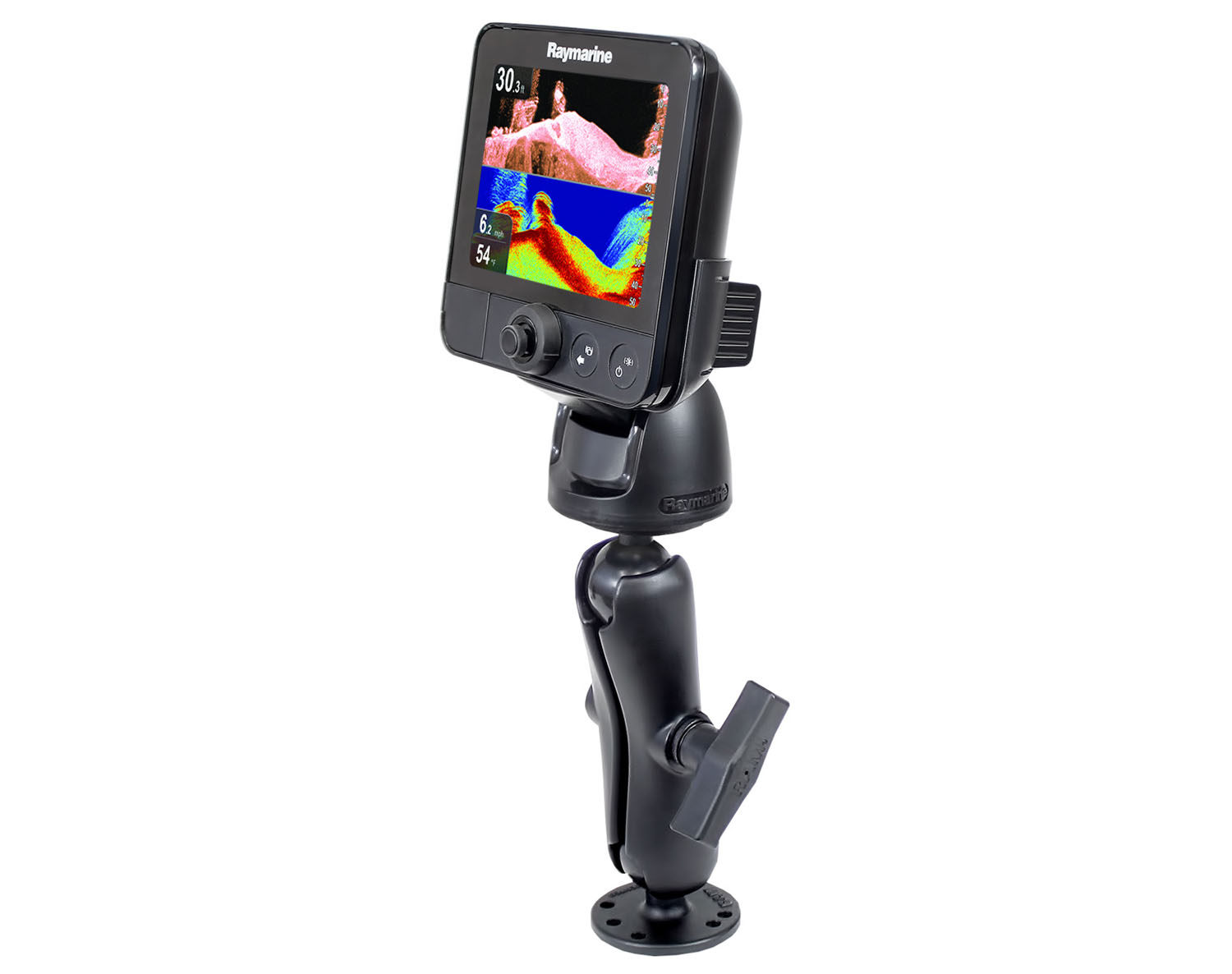

The RAM-101-RYM1 consists of (2 quantity) 2.5" diameter round bases that contains the universal AMPS hole pattern and standard length double socket arm. Included are (3 quantity) (#8-32 x 3/4" PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-101-RYM1 to the bottom of all Raymarine® Dragonfly&trade Sonar/GPS devices. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. This is a drill-down mounting solution.
Ball Size:
1.5" Rubber Ball Size
Material:
Powder Coated Marine Grade Aluminum
Note:
Part number reflects product packaged in clear clam shell for store shelf display.
C size 1.5" (Holds up to 4 lbs)
Powder Coated Marine Grade Aluminum
Fishfinder/Chartplotter
Boat
Kayak
Drill Down
Mounts
Retail Packaging
Medium Arm
Raymarine
Dragonfly
