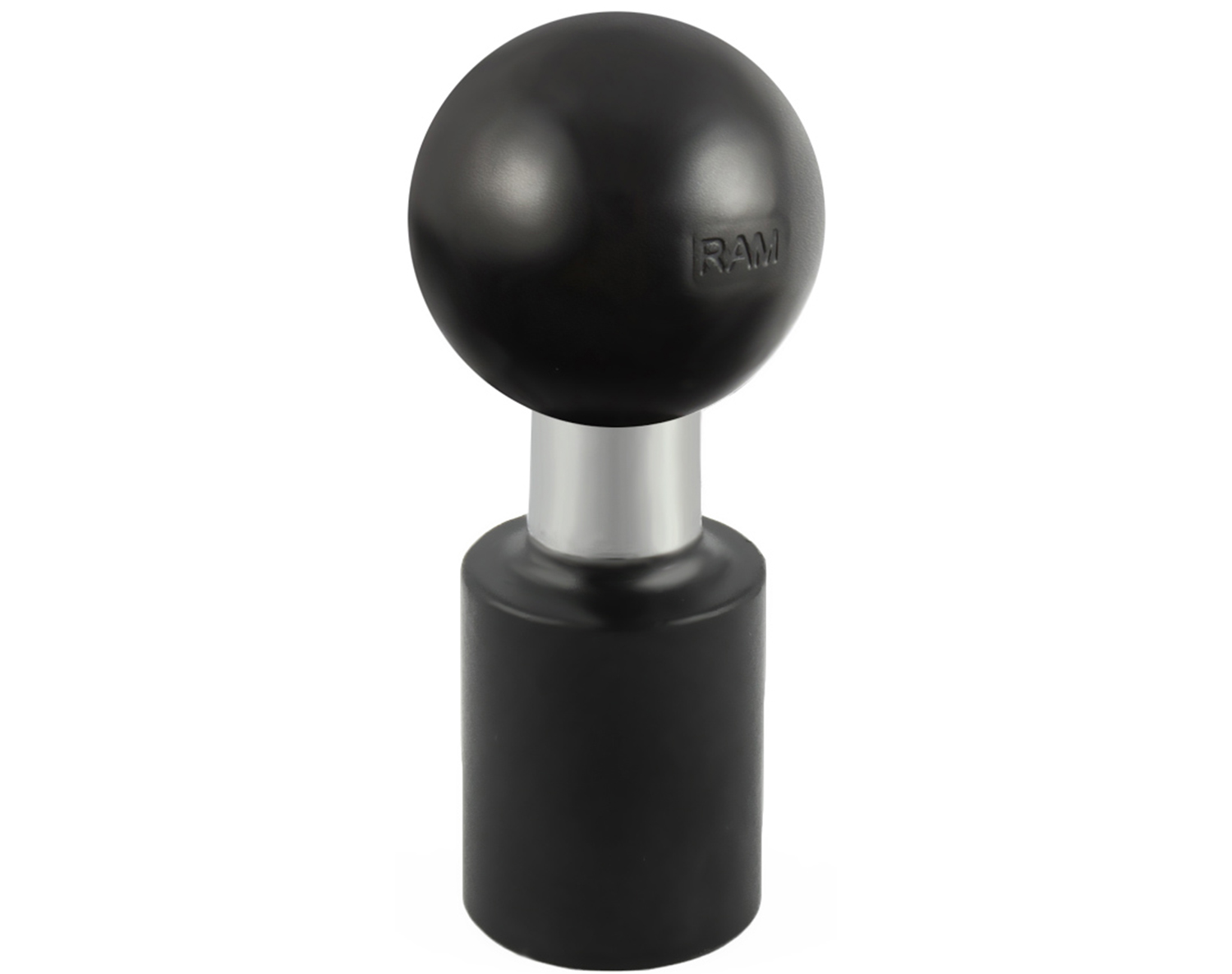

RAM 1/2" NPT Female Threaded Hole Base with 1.5" Ball.

Brand RAM Mounts
Item #006709
Availability :Available on order - (14 Weeks)

RAM 1/2" NPT Female Threaded Hole Base with 1.5" Ball

Part No RAM-218-1U

7.200KWD
  • PRODUCT DESCRIPTION

  • PRODUCT SPECIFICATIONS

  • APPLICATIONS

The RAM-218-1U consists of a 1.5" ball and 0.5" NPT female thread. This part connects to any 0.5" NPT male thread, including RAM-PA82xx flex arm series mounts.





NPT Thread and Pipe Sizing:
NPT (National Pipe Thread) is a standard used in joining pipes and fittings that have a tapered thread. As a general rule, the NPT inch size is the inside diameter of the threaded pipe and is known as the NPS (Nominal Pipe Size). The outer diameter (OD) of the pipe is shown in the table below:


NPT Size (NPS)                    Pipe Outer Dia. (OD)                Threads per inch
0.25"                                                 0.540"                                      18
0.50"                                                 0.840"                                      14
1"                                                      1.315"                                      11.5


Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1.5" Rubber Ball Size

Note:
The "U" in the part number reflects product packaged in poly bag.

Ball and socket size Material Product Type Packaging
C size 1.5" (Holds up to 4 lbs) Powder Coated Marine Grade Aluminum Adapter Packaged in Poly Bag
