RAM 11mm Flat Base with Double Socket Arm and Diamond Adaptor.

Brand RAM Mounts
Item #008249
Availability :Out of Stock

RAM 11mm Flat Base with Double Socket Arm and Diamond Adaptor

Part No RAM-B-179U

12.600KWD
  • PRODUCT DESCRIPTION

  • PRODUCT SPECIFICATIONS

  • APPLICATIONS

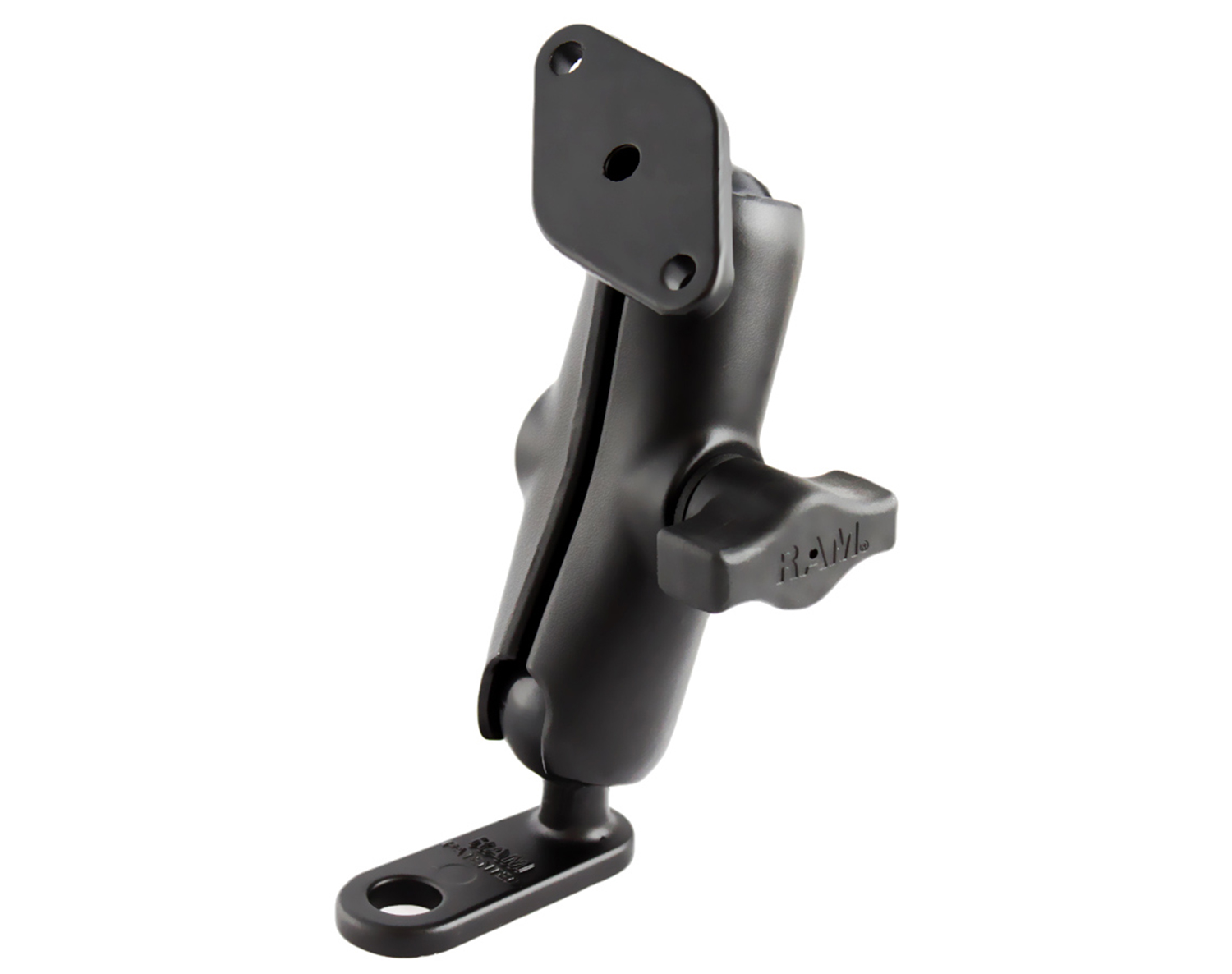

The RAM-B-179U consists of a 1" diameter ball base, connected to a 2.25" x 0.875" base with 11mm hole, double socket arm and diamond base adapter. This mount is often used on motorcycles, attaching to the mirror frame, most commonly found on BMW motorcycles. as well as many handlebar pinchbolts with a washer (base is 5mm thick). The 2.43" x 1.31" diamond base contains two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.





Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size

Note:
The "U" in the part number reflects product packaged in poly bag.

Ball and socket size

  • B size 1" (Holds up to 2 lbs)

Material

  • Powder Coated Marine Grade Aluminum

Vehicle

  • Motorcycle

Mount function

  • Bolt Head Adapter

  • Drill Down

Product Type

  • Mounts

Packaging

  • Packaged in Poly Bag

Arm

  • Medium Arm
