RAM 1" Ball Mount with Short Arm & 2/Diamond Bases

Brand RAM Mounts
Item #007093
Availability :Preorder - (2 Weeks)

RAM 1" Ball Mount with Short Arm & 2/Diamond Bases

Part No RAM-B-102U-A

16.250KWD
Qty Sorry, Preorder - (2 Weeks)
  • PRODUCT DESCRIPTION

  • PRODUCT SPECIFICATIONS

  • APPLICATIONS

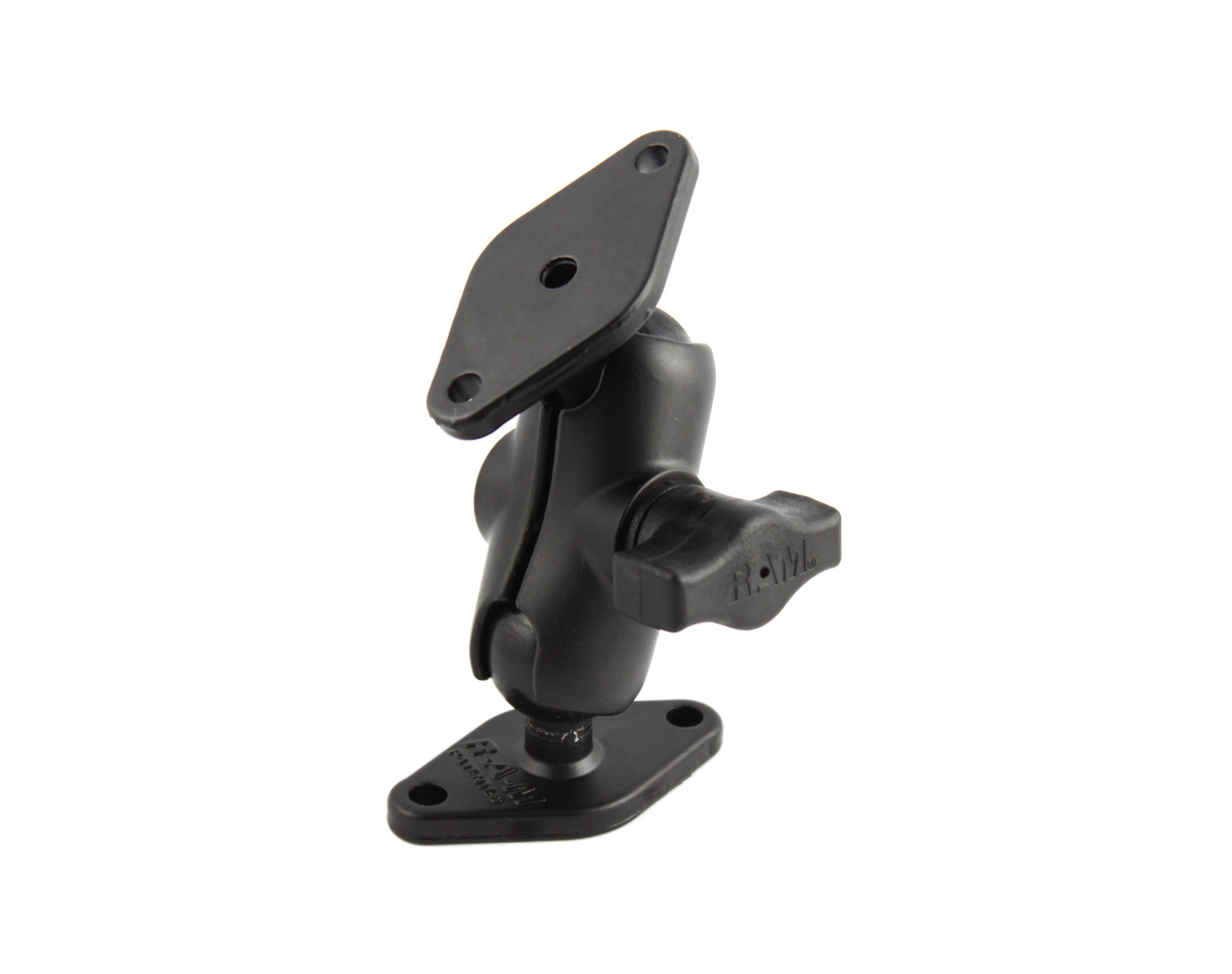

The RAM-B-102U-A consists of a short double socket arm and two diamond bases. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.





Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber "B" Ball Size

Note:
The "U" in the part number reflects product packaged in poly bag.


Ball and socket size

  • B size 1" (Holds up to 2 lbs)

Material

  • Powder Coated Marine Grade Aluminum

Mount function

  • Drill Down

Product Type

  • Mounts

Packaging

  • Packaged in Poly Bag
