Horiziontal Base Mount with Swing Arm C Size 1.5" Ball and Lowrance Mounting Base

Brand RAM Mounts
Item #006462
Availability :Available on order - (14 Weeks)

Horiziontal Base Mount with Swing Arm C Size 1.5" Ball and Lowrance Mounting Base

Part No RAM-109H-2B-B-LO11

46.800KWD
  • PRODUCT DESCRIPTION

  • PRODUCT SPECIFICATIONS

  • APPLICATIONS

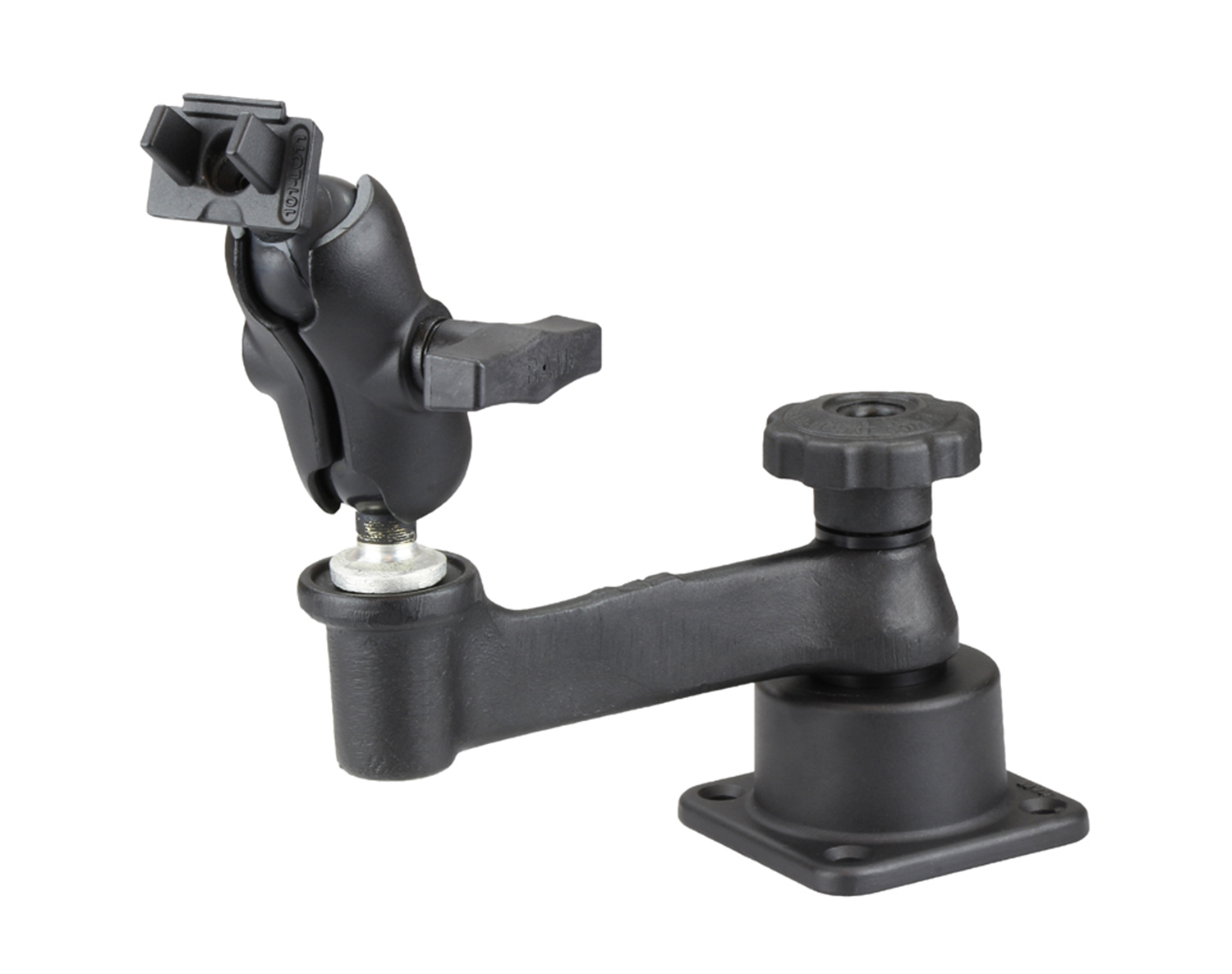

The RAM-109H-2B-B-LO11 consists of a 6" long STRAIGHT swing arm mounted on a horizontal surface mounting base. At the free end of the mount swing arm is a C size 1.5" ball.The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360-degree rotation and the ball and socket system allows a 180-degree vertical pivot with a 360-degree rotation. Included is a short length C size double socket arm, also included is the RAM Lowrance adapter base includes a 1.5" diameter rubber ball and inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti², HOOK-3, HOOK-4, HOOK-5 and MARK-5 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds.

SOCKET-TO-SOCKET LENGTH

3.56"



HOLE PATTERN

2.5" x 2.5"



PLATE SIZE

3.47" x 3.47"



BALL/SOCKET SIZE

C Size (1.5")



WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs



MATERIALS

Marine-grade aluminum



PACKAGING TYPE

Poly Bag



ADDITIONAL INFORMATION

  • This product is not compatible with the standard Lowrance Elite-7.
Device Vehicle Mount function Product Type Packaging Arm Device Brand Device Model
Fishfinder/Chartplotter Boat Drill Down Mounts Retail Packaging Short Arm Lowrance Elite-7 Ti
Elite-7 Ti²
Elite-5
Elite-5 Ti
HOOK-3
HOOK-4
HOOK-5
MARK-5
