RAM C Size 1.5" Ball Mount with Long Double Socket Arm, 2.5" Round Plate with AMPs Hole Pattern & 4.75" Square Plate VESA 75mm and 100mm Hole Patterns

Brand RAM Mounts
Item #006377
Availability :Available on order - (14 Weeks)

RAM C Size 1.5" Ball Mount with Long Double Socket Arm, 2.5" Round Plate with AMPs Hole Pattern & 4.75" Square Plate VESA 75mm and 100mm Hole Patterns

Part No RAM-101U-D-246

30.600KWD
  • PRODUCT DESCRIPTION

  • PRODUCT SPECIFICATIONS

  • APPLICATIONS

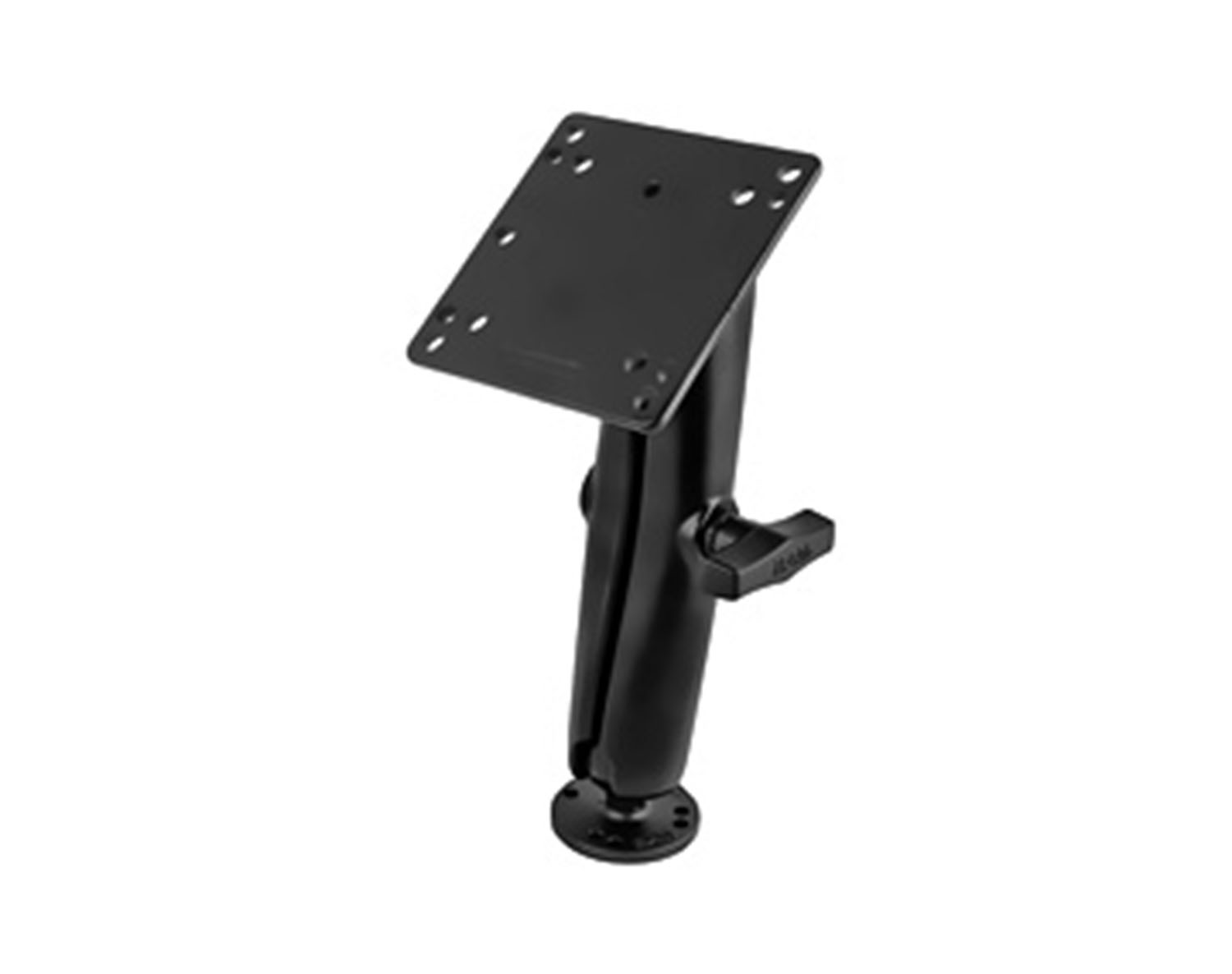

The RAM-101U-D-246 consists of a long double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 4.75" square plate with the VESA hole pattern. The VESA plate contains a 75mm X 75mm and 100mm X 100mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.





Weight Capacity:
4.5kg weight (approx 10 lbs)

Plate Hole Patterns:
100 x 100 VESA Pattern
75x 75 VESA Pattern
100 x 50 Half VESA Pattern

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1.5" Rubber Ball Size

Note:
The "U" in the part number reflects product packaged in poly bag.

Ball and socket size

  • C size 1.5" (Holds up to 4 lbs)

Material

  • Powder Coated Marine Grade Aluminum

Device

  • Monitor

Mount function

  • Drill Down

Product Type

  • Mounts

Packaging

  • Retail Packaging

Arm

  • Long Arm
